Comprehensive CDA-1218GAE Pro AV/IT Integrator Series HDMI UHD 1x2 Distribution Amplifier Splitter with Audio Extraction, EDID Management and 4K to 1080p Down-Scaler
CDA-1218GAE|RH-CDA1218GA
Comprehensive CDA-1218GAE Pro AV/IT Integrator Series HDMI UHD 1x2 Distribution Amplifier Splitter with Audio Extraction, EDID Management and 4K to 1080p Down-Scaler
CDA-1218GAE|RH-CDA1218GA
Key Features
- Versatile AV Distribution
- equipped with an optical SPDIF and a 3.5mm audio output port for de-embedding analog audio
- 4K to 1080p Video Down-Scaler
Key Features
- Versatile AV Distribution
- equipped with an optical SPDIF and a 3.5mm audio output port for de-embedding analog audio
- 4K to 1080p Video Down-Scaler
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Versatile AV Distribution
- equipped with an optical SPDIF and a 3.5mm audio output port for de-embedding analog audio
- 4K to 1080p Video Down-Scaler
Comprehensive
Comprehensive CDA-1218GAE Pro AV/IT Integrator Series HDMI UHD 1x2 Distribution Amplifier Splitter with Audio Extraction, EDID Management and 4K to 1080p Down-Scaler
CDA-1218GAE | RH-CDA1218GA
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview

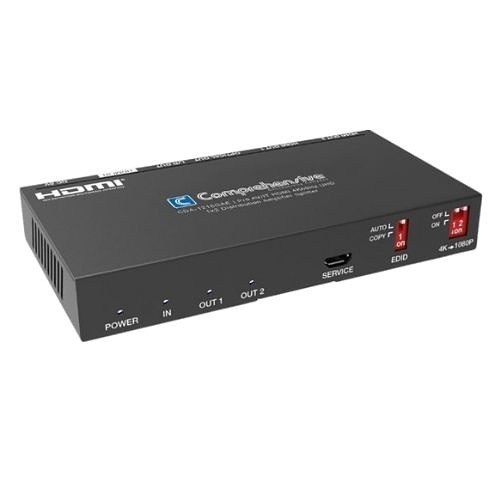

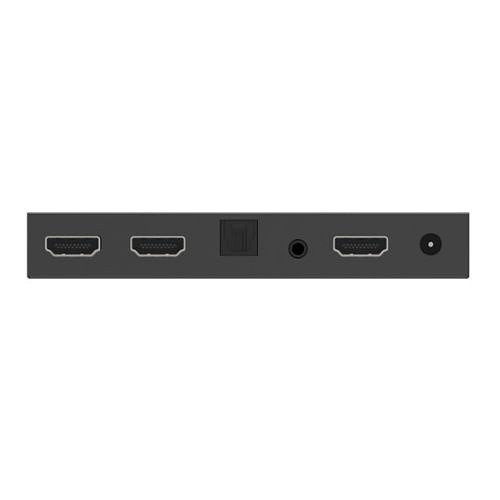

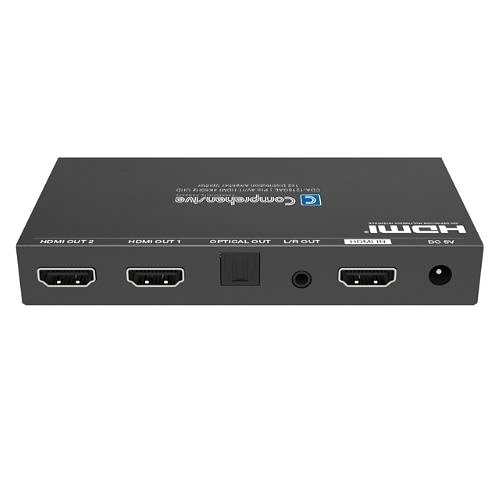

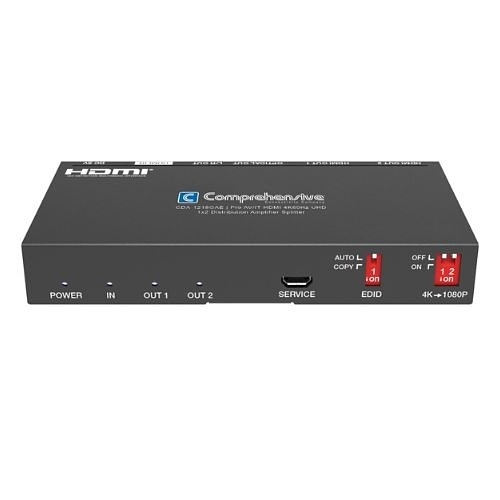

Comprehensive’s CDA-1218GAE is a HDMI 1x2 Splitter that distributes 1 HDMI source signal to 2 HDMI displays simultaneously which supports resolutions up to 4K2K at 50/60Hz (4:4:4) 18Gbps. The CDA-1218GAE is able to extract audio from the HDMI source to both optical and analog outputs simultaneously. This HDMI splitter offers two EDID modes (COPY/AUTO) and all output ports support signal bypass and video downscaling (4K to 1080p).
Main Features
- Versatile AV Distribution
- equipped with an optical SPDIF and a 3.5mm audio output port for de-embedding analog audio
- 4K to 1080p Video Down-Scaler
- Supports 18Gbps video bandwidth
- HDMI 2.0b, HDCP2.2/HDCP1.4 compliant
- Supports video resolution up to 4K2K at 50/60Hz (4:4:4)
- Supports digital and analog audio extract output from HDMI source
- Output ports support signal bypass and 4K to 1080P down-scaler function via the dial switch on panel
- EDID can be selected COPY and AUTO modes via the dial switch on panel
General Information
Name: Comprehensive CDA-1218GAE Pro AV/IT Integrator Series HDMI UHD 1x2 Distribution Amplifier Splitter with Audio Extraction, EDID Management and 4K to 1080p Down-Scaler
Category: Comprehensive, Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code: 808447086690
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number RH-CDA1218GA Brand Name Comprehensive Manufacturer Part Number CDA-1218GAE Product Name Pro AV/IT Integrator Series HDMI 4K60Hz UHD 1x2 Distribution Amplifier Splitter with Audio Extraction, EDID Management and 4K to 1080p Down-Scaler Product Series Pro AV/IT Integrator Product Type Amplifier Splitter
-
Number of HDMI Inputs 1
-
Depth 2.5" Height 0.55" Width 4.72"
-
Input Voltage 100-240V AC
-
Limited Warranty 3-Year
