RDL DDS-RN42 Wall-Mounted Bi-Directional Mic / Line Dante Interface, 4x2, Stainless Steel
DDS-RN42
|RL-DDSRN42
Shop All Radio Design Labs
RDL DDS-RN42 Wall-Mounted Bi-Directional Mic / Line Dante Interface, 4x2, Stainless Steel
DDS-RN42 | RL-DDSRN42
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

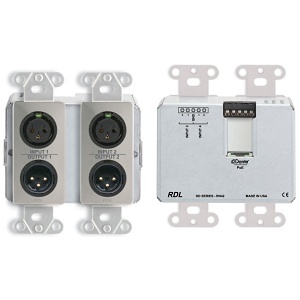

The DDS-RN42 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs on the front panels, two balanced line inputs on a rear-panel detachable terminal block and two balanced line outputs on front-panel XLR jacks. The module is configured and adjusted using RDL CONSOLE or other network control software. The DDS-RN42 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDS-RN42 is PoE powered, and is available in multiple finishes with optional customized graphics.
Main Features
- Dante Network Interface for Four Audio Inputs and Two Audio Outputs
- Two Inputs and Outputs on XLR Jacks on Front Panels
- Two Inputs on Rear Panel Detachable Terminal Block
- Module is Configured and Adjusted Using Network Control Software
- Q-SYS Plug-InAvailable for Configuring in Q-SYS Environment
- Converts Two Standard Mic or Line Audio Sources to Dante Network Channels
- Each Input Gain is Selected by Software
- Mic Gain - 35 dB, 42 dB or 59 dB
- Line Gain - Unity or 12 dB
- 48 V Mic Phantom (P48) Selected by Software
General Information
Name: RDL DDS-RN42 Wall-Mounted Bi-Directional Mic / Line Dante Interface, 4x2, Stainless Steel
Category: Radio Design Labs, Pro AV, Commercial Audio, Pro Wall Plates
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number RL-DDSRN42 Brand Name Radio Design Labs Manufacturer Part Number DDS-RN42
