Product Overview

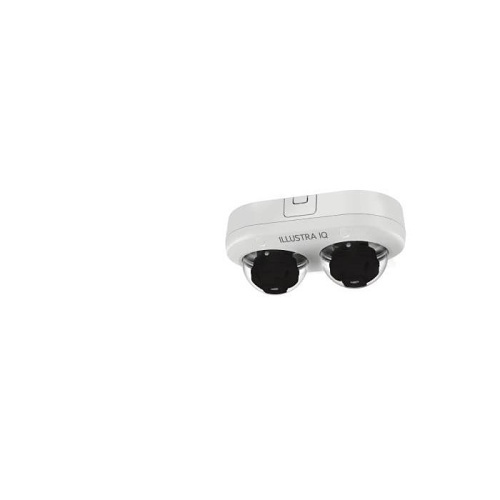

The ILL FG4 DUAL SENSOR 16MP IR by American Dynamics is a dual-head sensor camera designed for advanced surveillance. It offers resolutions of 10MP and 16MP with superior features such as WDR, defog, and individually controllable IR for each sensor. This model enhances coverage with a wider field of view and reduces cost of ownership through a single power cable and one VMS license. Installation is streamlined as the camera clicks onto a mounting plate equipped with clips for internal connections and a unified driver for screws. Dedicated AI analytics in each sensor support independent object classification, rules, and alerts without restrictions on captured data types, and the optimized aspect ratio minimizes wall coverage in favor of hall monitoring.
Main Features
- Available in 10MP and 16MP resolution plus superior WDR, defog and individually controllable IR per sensor
- Wider field of view and lower cost of ownership with dual-head sensors, one power cable, and one VMS license
- Camera simply clicks onto mounting plate featuring clips for internal connections and a single driver for all screws
- Dedicated AI analytics built into each sensor enable independent object classification, rules and alerts with no restriction on captured data types
- Optimized aspect ratio to get less wall and more hall regardless of deployment
General Information
Name: Illustra IFS16-M10-OIA4 16MP ILL FG4 Dual Sensor IR
Category: Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 840456181393
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number RO-IFS10M0IA Brand Name Illustra Manufacturer Part Number IFS16-M10-OIA4
Connectivity Technology Wired Effective Camera Resolution 16MP Field of View Horizontal, Vertical Maximum Frame Rate 60 fps Minimum Focal Length 3.42mm Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Maximum Video Resolution 3840 x 2169
Operating Humidity 95%
Longest Shutter Speed 1/4 Second Minimum Illumination 0.04 lux, 0.13 lux Shortest Shutter Speed 1/32000 Second
Focal Length 3.42-6.85mm Maximum Focal Length 6.85mm
Durability Vandal Resistant, Weather Resistant Height 3.69" Width 4.84"
Input Voltage 24V AC
Length 8.66" Mount Type Ceiling Mount, Wall Mount
Limited Warranty 5-Year
Environmental Certification REACH, RoHS, UL, WEEE Environmentally Friendly Yes Features Available in 10MP and 16MP resolution plus superior WDR, defog and individually controllable IR per sensor, Camera simply clicks onto mounting plate featuring clips for internal connections and a single driver for all screws, Wider field of view and lower cost of ownership with dual-head sensors, one power cable, and one VMS license Impact Protection Rating IK10
