Product Overview

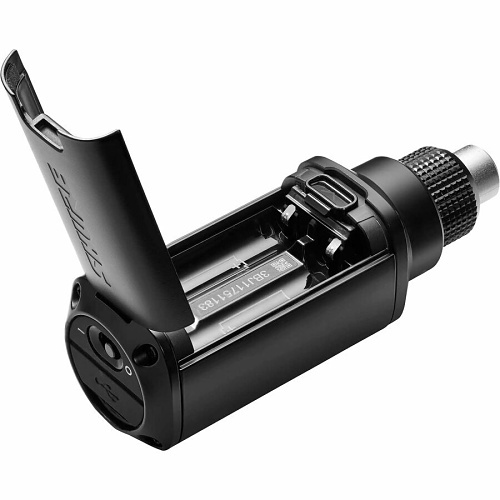

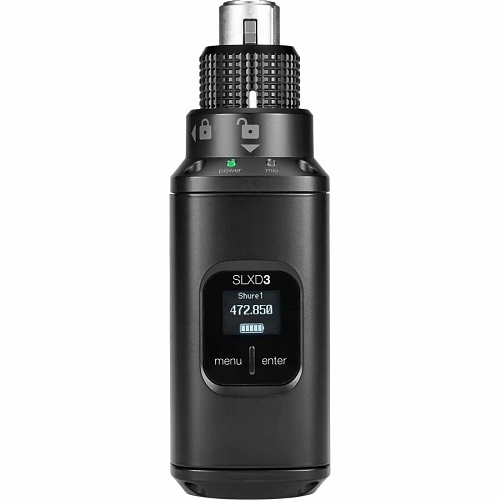

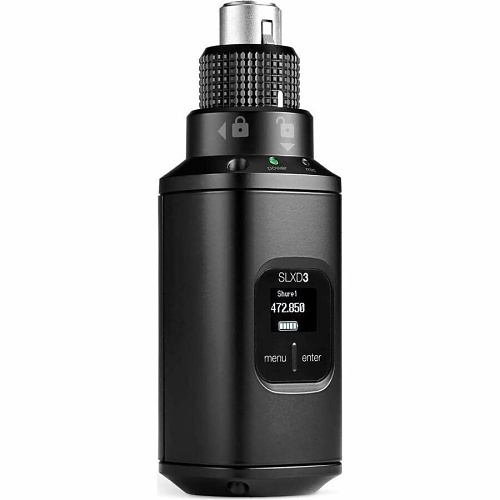

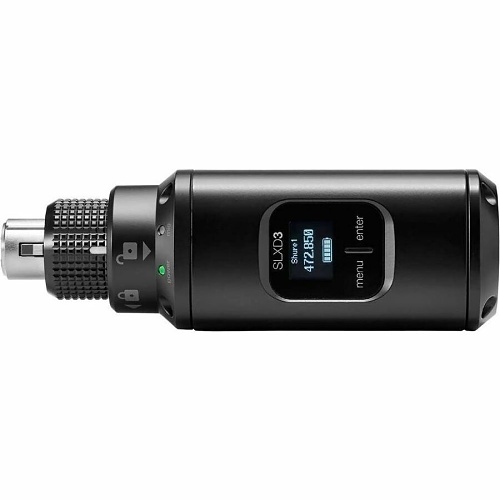

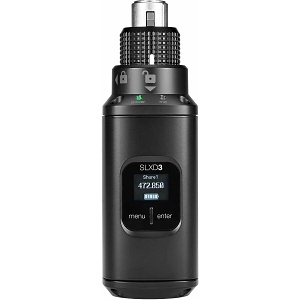

SLXD3 Plug-On Digital Wireless Transmitter converts any XLR source, including dynamic and condenser microphones, for use as an SLX-D wireless transmitter. Featuring a patented locking ring for a secure, wobble-free connection, the SLXD3 sends 24-bit digital audio from any XLR source to an SLXD4 or SLXD5 Digital Wireless receiver via rock-solid RF connection. Use IR Sync to pair transmitters easily and quickly with your choice of SLX-D wireless receiver. A full suite of optional rechargeability accessories enables wireless excellence, wherever required, and the bright OLED screen displays battery life in hours and minutes when used with the optional SB903 Rechargeable Lithium-Ion batteries. Includes SLXD3 plug-on transmitter, a pair of AA alkaline batteries and a leather protective sleeve with an integrated belt clip.
- Convert any XLR source for use within SLX-D wireless systems
- Provides +12-48 VDC phantom power for use with condenser microphones
- Patented locking mechanism for secure, wobble-free connection
- Transparent 24-bit digital audio
- Extended 20 Hz to 20 kHz frequency range (microphone dependent)
- 118 dB dynamic range
- Digital predictive switching diversity
- Switchable 1/10/30 mW power levels (region- and band-dependent)
- 44 MHz tuning bandwidth (region dependent)
- 32 available channels per frequency band (region dependent)
- Up to 10 compatible systems per 6MHz TV band; 12 systems per 8 MHz bandv
- Easy pairing of transmitters and receivers over scan and IR sync
- Up to 8 hours from 2 AA batteries or optional Shure SB903 rechargeable battery
- Rugged metal construction
Main Features
- Converts any XLR source to SLX-D wireless
- Patented locking ring for secure connection
- 24-bit digital audio transmission
- Supports +12-48 VDC phantom power
- Extended 20 Hz to 20 kHz frequency range
- 118 dB dynamic range
- Switchable power levels: 1/10/30 mW
- 44 MHz tuning bandwidth
- Up to 10 compatible systems per 6MHz TV band
- Rugged metal construction
General Information
Specifications
-
ADI Part Number SB-SLXD3H55 Brand Name Shure Manufacturer Shure, Inc Manufacturer Part Number SLXD3=-H55 Product Name SLXD3 Plug-On Digital Wireless Transmitter With XLR Connector Product Type Wireless Bodypack Microphone Transmitter Weight 7.05oz
-
Maximum Frequency Response 20 kHz Minimum Frequency Response 20Hz
-
Battery Chemistry Lithium Ion (Li-Ion) Battery Run Time 8 Hour Battery Size Supported AA Number of Batteries Supported 2
-
XLR Yes
-
Microphone Technology Condenser, Dynamic
-
Maximum Operating Frequency 558MHz Minimum Operating Frequency 514MHz
-
Material ABS, Aluminum, Metal, PC, Zinc Alloy
-
Diameter 1.6" Length 5"
-
Compatibility Shure SLX-D, Shure SLX-D or SM58, Shure SLX-D SLXD-5 Environmental Certification California Proposition 65 Environmentally Friendly Yes Package Contents - 1 x SLXD3 Plug-On Digital Wireless Transmitter
- 1 x Leather Protective Sleeve with Integrated Belt Clip
- 1 x Zippered Carrying Pouch
- 2 x AA Alkaline Batteries
