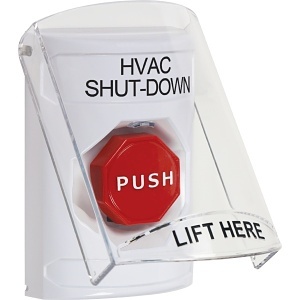

STI SS2322HV-EN Stopper Station Multipurpose Push Button Switch, Shield, Key-to-Reset, HVAC SHUT DOWN English Label, White
SS2322HV-EN
|SF-2322HVEN
Shop All Safety Technology International
STI SS2322HV-EN Stopper Station Multipurpose Push Button Switch, Shield, Key-to-Reset, HVAC SHUT DOWN English Label, White
SS2322HV-EN | SF-2322HVEN
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
These ADA Compliant, multipurpose push button switches cover a wide range of applications both indoors and outdoors. They’re called Stopper Stations. They incorporate a unique, patented design that helps dramatically to stop accidental activation. A number of standard models are available or we can create custom units to meet your needs exactly. You have your choice of any of five universal shell colors, several button styles, standard or custom wording and language.
Main Features
- Key-to-Reset push button
- Raised HVAC SHUT-DOWN label
- Two (2) Form “C” contacts, DPDT, rated 10 amps @ 125/250 VAC, 6 amps @ 30 VDC
- Multicolor illumination bar 12-24VAC/VDC LED
- Protective shield helps protect button from damage and accidental activation
- UL/cUL Listed
- ADA Compliant
General Information
Name: STI SS2322HV-EN Stopper Station Multipurpose Push Button Switch, Shield, Key-to-Reset, HVAC SHUT DOWN English Label, White
Category: Safety Technology International, Access Control, Egress Devices & Alarms, Emergency & Lockdown Buttons
UPC Code: 662950534730
Country of Origin: United States.Country of origin is subject to change.
Specifications
ADI Part Number SF-2322HVEN Brand Name Safety Technology International Cover Yes Manufacturer Safety Technology International Manufacturer Part Number SS2322HV-EN Product Line Stopper Station Product Model SS2322HV-EN Product Name Stopper Station Product Series SS2 Product Type Push Button
Material PC
Maximum Operating Temperature 250°F Minimum Operating Temperature -40°
Color White
Limited Warranty 3-Year
