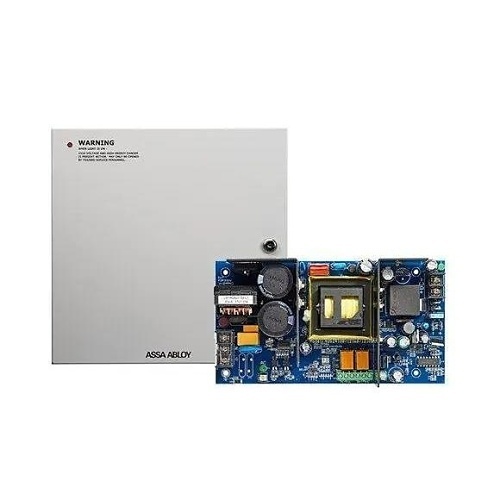

Securitron AQS2410-16F2 Power Supply, 24VDC, 10A, 16 Fused 2A Output
AQS2410-16F2
|SN-AQ2016F2
Shop all Securitron by ASSA ABLOY
Securitron AQS2410-16F2 Power Supply, 24VDC, 10A, 16 Fused 2A Output
AQS2410-16F2 | SN-AQ2016F2
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Securitron AQS2410 Series of switching power supplies are single voltage, UL listed, supervised units. These units are field selectable with integrated battery charger. They provide 10A at 24VDC, with up to 16 independently controlled power limited outputs.
Main Features
- All combinations of AQ power supplies and distribution boards are UL listed
- Single voltage 24 VDC continuous output
- Up to 92% efficiency which results in decreased operating costs and lengthens the lifespan of electronics
- Tolerates brownout or overvoltage input ± 15% of nominal voltage
- Thermal shutdown protection with auto restart
- Circuit breaker protects against overcurrent and reverse battery faults
- Dedicated battery charging circuit prevents overvoltage on locking devices
- Low battery cutoff at 18V at 24V
- Available with a single relay fire trigger or individually triggered relayed outputs
General Information
Name: Securitron AQS2410-16F2 Power Supply, 24VDC, 10A, 16 Fused 2A Output
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code: 784607047476
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-AQ2016F2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number AQS2410-16F2 Product Model AQS2410-16F2 Product Name Securitron AQS2410-16F2 10 Amp, 24 VDC Power Supply with Enclosure Product Type Power Supply
Output Voltage 24V DC
Form Factor Enclosure
Input Voltage 115V AC, 230V AC Output Current 10A
Limited Warranty Lifetime
Country of Origin US Environmental Certification UL Environmentally Friendly Yes
