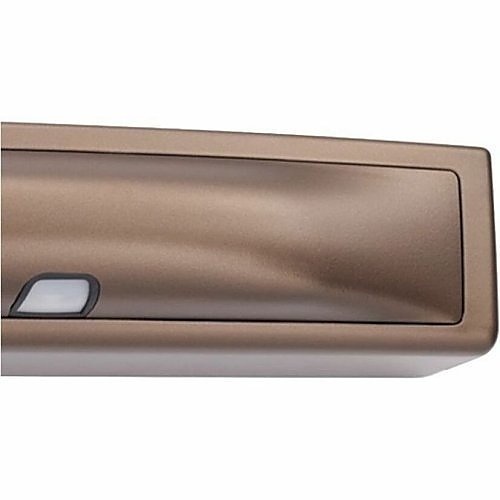

Securitron DEM680E-CA15S-613E DEM680E Series Delayed Egress M680 EcoMag Magnalock, CA15S California 15 Second Compliant, Dark Oxidized Satin Bronze

Brand: Securitron by ASSA ABLOY
ADI #:SN-DM681613E Model #: DEM680E-CA15S-613E  Name: Securitron DEM680E-CA15S-613E DEM680E Series Delayed Egress M680 EcoMag Magnalock, CA15S California 15 Second Compliant, Dark Oxidized Satin Bronze
  • Autosensing dual voltage with microprocessor technology – no field adjustment required
  • Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
  • Instant release circuit– no residual magnetism
Securitron DEM680E-CA15S-613E DEM680E Series Delayed Egress M680 EcoMag Magnalock - CA15S California 15 Second Compliant, 613E/Dark Oxidized Satin Bronze

Product Overview

Configurable, 1,200 lbs holding force, bracket mounted, delayed egress Magnalock.

Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.

Building on the technology of the Securitron EcoMag Series, the DEM680E is a direct replacement for the iMXDA. Designed for applications that require a lock that delays the opening of a door, the DEM680E standard model is HUGS-compliant with specific code compliant models also available. For use on interior and perimeter exit, single, out-swinging doors.

General Information

Name : Securitron DEM680E-CA15S-613E DEM680E Series Delayed Egress M680 EcoMag Magnalock, CA15S California 15 Second Compliant, Dark Oxidized Satin Bronze , Securitron by ASSA ABLOY
Category : Magnetic Locks
UPC Code : 784607051879
Country of Origin : United States. Country of origin is subject to change.

Specifications

General Information

ADI Part Number : SN-DM681613E
Brand Name : Securitron
Manufacturer : ASSA ABLOY
Manufacturer Part Number : DEM680E-CA15S-613E
Product Line : Magnalock
Product Model : DEM680E
Product Name : DEM680E EcoMag Delayed Egress Magnalock
Product Series : M680E
Product Type : Magnetic Lock

Technical Information

Door Supported : Single Door
Holding Force (g) : 544310.844
Magnet Depth : 2.50"
Magnet Depth (mm) : 63.5
Magnet Height : 3.13"
Magnet Height (mm) : 79.375

Physical Characteristics

Application/Usage : Indoor, Outswing Door
Form Factor : Bracket Mount
Lock Depth : 2.5"
Lock Depth (mm) : 63.5
Lock Height : 3"
Lock Height (mm) : 76.2
Lock Width : 1.5"
Lock Width (mm) : 38.1

Power Description

Input Current : 315 mA, 575 mA
Input Current (A) : 0.315, 0.575
Input Voltage : 12 V DC, 24 V DC

Product Information

Finishing : Dark Oxidized Satin Bronze
Holding Force : 1200 lb

Warranty

Limited Warranty : Lifetime

Miscellaneous

Country of Origin : United States
Features : Adjustable Mounting Bracket, Door Position Switch (DPS), Dual Voltage, EcoMag, Egress Mode Status, Magnetic Bond Sensor (MBS), No Residual Magnetism, Selectable Nuisance Delay, Status LED
