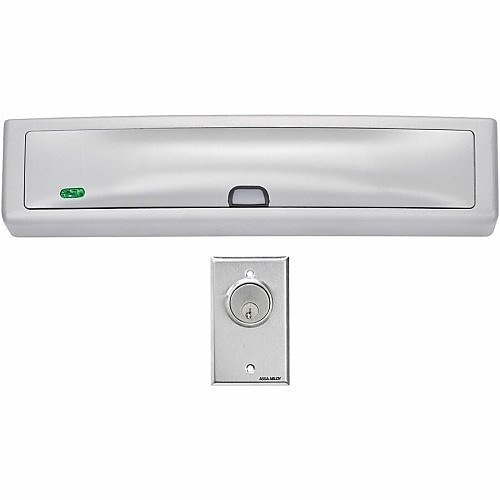

Securitron DEM680E-CA30S-606 DEM680E Series Delayed Egress M680 EcoMag Magnalock, California 30 Second Compliant, Satin Brass
DEM680E|SN-DM68C3606
Securitron DEM680E-CA30S-606 DEM680E Series Delayed Egress M680 EcoMag Magnalock, California 30 Second Compliant, Satin Brass
DEM680E|SN-DM68C3606
Key Features
- Autosensing dual voltage with microprocessor technology – no field adjustment required
- Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
- Instant release circuit– no residual magnetism
Key Features
- Autosensing dual voltage with microprocessor technology – no field adjustment required
- Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
- Instant release circuit– no residual magnetism
.jpg)
Key Features
- Autosensing dual voltage with microprocessor technology – no field adjustment required
- Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
- Instant release circuit– no residual magnetism
Securitron by ASSA ABLOY
Securitron DEM680E-CA30S-606 DEM680E Series Delayed Egress M680 EcoMag Magnalock, California 30 Second Compliant, Satin Brass
DEM680E | SN-DM68C3606
Please sign in to view pricing and availability and to add to cart.
Accessories
Overview
Specifications
Documents
Product Overview
Configurable, 1,200 lbs holding force, bracket mounted, delayed egress Magnalock.
Highly configurable, strong, easy-to-mount. The latest in delayed egress technology.
Building on the technology of the Securitron EcoMag Series, the DEM680E is a direct replacement for the iMXDA. Designed for applications that require a lock that delays the opening of a door, the DEM680E standard model is HUGS-compliant with specific code compliant models also available. For use on interior and perimeter exit, single, out-swinging doors.
Main Features
- Autosensing dual voltage with microprocessor technology – no field adjustment required
- Patented BondSTAT magnetic bond sensor and integrated Door Position Switch (DPS)
- Instant release circuit– no residual magnetism
General Information
Name: Securitron DEM680E-CA30S-606 DEM680E Series Delayed Egress M680 EcoMag Magnalock, California 30 Second Compliant, Satin Brass
Category: Securitron by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
UPC Code: 784607051947
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-DM68C3606 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number DEM680E-CA30S-606 Product Line Magnalock Product Model DEM680E Product Name DEM680E EcoMag Delayed Egress Magnalock Product Series M680E Product Type Magnetic Lock
Door Supported Single Door
Application/Usage Indoor, Outswing Door Depth 2.5" Height 3" Width 1.5"
Input Current 315mA, 575mA Input Voltage 12V DC, 24V DC
Finishing Satin Brass Holding Force 1200 lb
Limited Warranty Lifetime
Country of Origin US Features Adjustable Mounting Bracket, Door Position Switch (DPS), Dual Voltage, EcoMag, Egress Mode Status, Magnetic Bond Sensor (MBS), Selectable Nuisance Delay, Status LED
