Product Overview

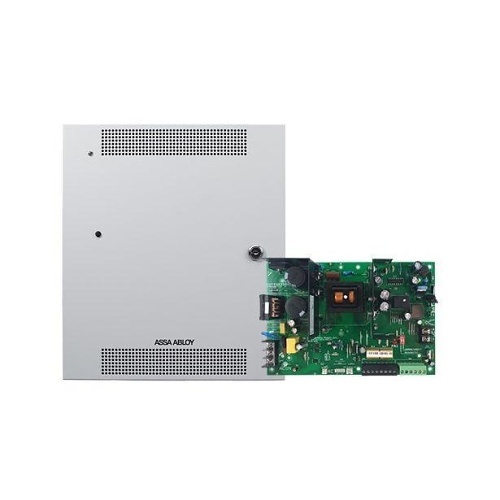

The AQL6-B100R8E1 from Securitron is a power supply 6A DV with enclosure, (1) B100, (1) R8. The Securitron AQL6 Series of switching power supplies are dual voltage, UL listed plus multi-voltage and network monitoring ready. These units are field selectable with a dedicated fast battery charger. They provide 6A at 12 or 24V DC and are expandable up to 16 outputs.
Main Features
- Low battery cutoff protects batteries from deep discharge
- Dedicated fast charger prolongs battery life
- Remote battery monitoring and testing
- Enhanced surge immunity for input/output protection
- 1000 event data recording
- LockSafe™ keeps locks cooler by providing a separate, dedicated battery charging circuit
- OutSmart™ technology provides dual-color LED visual notification which prevents applying incorrect voltages to the power supply: (Green: 12 V | Blue: 24 V)
- Auxiliary output is Class 2, power limited
- Mix and match UL Listing
- Instant auto-switch to battery on AC loss
General Information
Name: Securitron AQL6B100R8E1 Power Supply
Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies
UPC Code:
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-L6BR1 Brand Name Securitron by ASSA ABLOY Manufacturer Part Number AQL6-B100R8E1 Sector Access Control
Output Voltage 12, 24V DC
Output Current 6A
Amperage 6A
