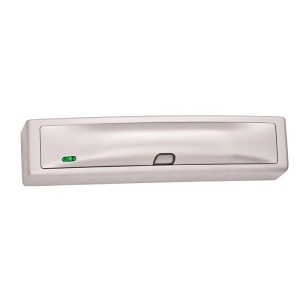

Securitron M680EBD-606 Eco Magnalock 680, 12/24VDC, Bondstat, 606
M680EBD-606
|SN-M680EBD60
Shop all Securitron by ASSA ABLOY
Securitron M680EBD-606 Eco Magnalock 680, 12/24VDC, Bondstat, 606
M680EBD-606 | SN-M680EBD60
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Intelligent. Optional door prop sensing allows the magnet to de-energize the coil when the door is held open for extended periods, dropping the power draw as low as 20mA at 12V.Versatile. Optional integrated PIR Request to Exit is an available option for this new magnalock, providing the flexibility to customize as needed.Eco-Friendly. With up to 80% decreased energy consumption, and biodegradable packaging insert, the Securitron M680E is the most eco-friendly magnalock available today.Easy installation. Updated strike plate mounting template makes for faster, easier installation.
Main Features
- Strike plate mounting template provides the easiest install for out-swing doors
- LED Indicator shows the lock is secure, open, or has an incomplete bond
- Tamper Switch sends an alarm output if the cover is removed and is selectable to NO or NC
- Optional integrated BondSTAT and integrated Door Position Switch
- Autosensing dual voltage with microprocessor technology
- Adjustable automatic relock timer (0 to 30 seconds)
- Energy efficient, low power usage
- Size optimized for use with door closers
General Information
Name: Securitron M680EBD-606 Eco Magnalock 680, 12/24VDC, Bondstat, 606
Category: Securitron by ASSA ABLOY, Access Control, Locking Devices, Magnetic Locks
UPC Code: 0784607045021
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SN-M680EBD60 Brand Name Securitron by ASSA ABLOY Manufacturer Part Number M680EBD-606
ADI Part Number Replaces SN-M680BD606 Model Number Replaces M680BD-606
Depth 0.625" Height 4.5" Width 2.75"
Contact Type DPDT, DPST
Country of Origin US Indoor/Outdoor Indoor
