Securitron PDB-8F1R2 Power Supply, Power Distribution with Fire Trigger, 2A

Compare

PDB-8F1R2 | SN-PDB8F1R2

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

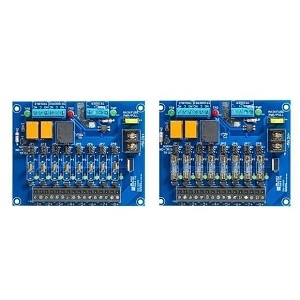

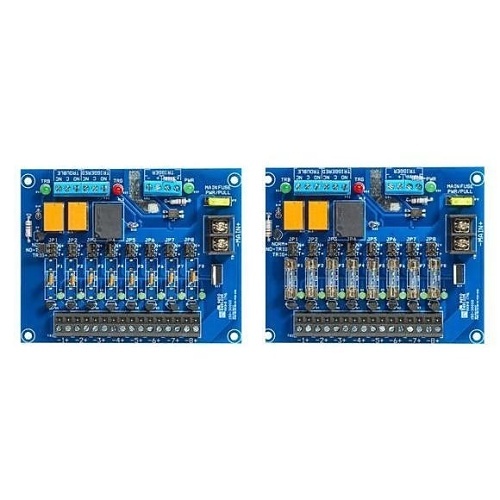

Securitron PDB-8F1R2 Power Distribution 8 FusedOutput 2A w/Fire Trigger/Relay.

8 Power Limited Outputs with Auto-Resetting
Circuit Breakers for model 8C1R
Each Output is Individually Selectable to Turn On, Turn Off, or always ON when Triggered
Outputs can be triggered with: Voltage or Reverse polarity (optically isolated) N/O or N/C switch with supervised EOL
Form C Contacts (TRIGGERED) and Red LED (TRG) Indicate Trigger Status
Form C Contacts (TROUBLE) and Green LED (TRB) Indicate: One of the output circuit breakers is tripped Main Fuse Blown or no power on input
Operates with 12-28VDC; Nominal 12-24VDC
Each Output pair has a Removable Terminal Block and Green Status LED
Main Power has Green Status LED
UL Listed Sub Assembly for Access Control and Burglar Alarm Systems

Name: Securitron PDB-8F1R2 Power Supply, Power Distribution with Fire Trigger, 2A

Category: Securitron by ASSA ABLOY, Batteries & Power Supplies, Power Supplies & Boards, Power Supplies

UPC Code: 784607046370

Country of Origin: United States. Country of origin is subject to change.

: ADI Part Number SN-PDB8F1R2 Brand Name Securitron by ASSA ABLOY Manufacturer ASSA ABLOY Manufacturer Part Number PDB-8F1R2 Product Model PDB-8F1R2 Product Name Securitron PDB-8F1R2 Power Distribution Board Product Type Power Supply
