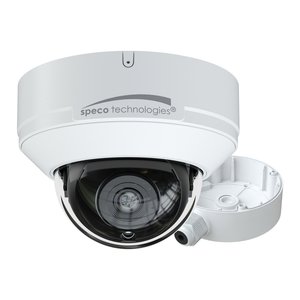

Speco V5D2 Dome IP Camera, 5MP High Definition-TVI with Infrared and 2.8mm Fixed Lens
V5D2|SO-V5D2
Speco V5D2 Dome IP Camera, 5MP High Definition-TVI with Infrared and 2.8mm Fixed Lens
V5D2|SO-V5D2
Key Features
- AHD,TVI,CVI,CVBS 4 in one
- 5MP TVI, 4MP CVI
- 20M IR
Key Features
- AHD,TVI,CVI,CVBS 4 in one
- 5MP TVI, 4MP CVI
- 20M IR
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- AHD,TVI,CVI,CVBS 4 in one
- 5MP TVI, 4MP CVI
- 20M IR
Speco Technologies
Speco V5D2 Dome IP Camera, 5MP High Definition-TVI with Infrared and 2.8mm Fixed Lens
V5D2 | SO-V5D2
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
5MP TVI camera
Main Features
- AHD,TVI,CVI,CVBS 4 in one
- 5MP TVI, 4MP CVI
- 20M IR
- IP67
General Information
Name: Speco V5D2 Dome IP Camera, 5MP High Definition-TVI with Infrared and 2.8mm Fixed Lens
Category: Speco Technologies, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 030519040150
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number SO-V5D2 Brand Name Speco Technologies Manufacturer Speco Technologies Manufacturer Part Number V5D2 Product Model V5D2 Product Name V5D2 Product Type Dome Camera Weight 2.13lb
-
Effective Camera Resolution 5MP Field of View Horizontal: 95.3° Vertical: 53.2° Diagonal:115.0° Lens Mount Type M12 Lens Type Fixed Maximum Aperture f/1.2 Maximum Frame Rate 30fps Night Vision Yes Night Vision Type Infrared Video Formats NTSC, PAL
-
Image Sensor Type CMOS Night Vision Distance 780" Wide Dynamic Range Yes
-
Ingress Protection Rating IP67
-
Maximum Video Resolution 2560 x 1936
-
Maximum Operating Temperature 122°F Minimum Operating Temperature -22°F Operating Humidity 10-90%
-
Longest Shutter Speed 1/50 s|1/60 s Minimum Illumination 0.01 lux Shortest Shutter Speed 1/100000 s
-
Focal Length 2.8 mm Lens Included Yes
-
Remote Management Yes
-
ADI Part Number Replaces SO-V5D1, SO-VLT4DG Model Number Replaces V5D1, VLT4DG
-
Color White Depth 5" Durability Dustproof, Impact Resistant, Vandal Resistant, Waterproof, Weather Resistant Form Factor Dome Height 3.5" Width 5"
-
Input Voltage 12V DC
-
Diameter 4.7" Mount Type Ceiling Mount, Corner Mount, Flush Mount, Junction Box Mount, Pole Mount, Wall Mount
-
Analog Video Signal Format AHD, CVBS, CVI, TVI Maximum Resolution 1280 x 720
-
Limited Warranty 5-Year
-
Country of Origin CN Impact Protection Rating IK10 Indoor/Outdoor Indoor, Outdoor
