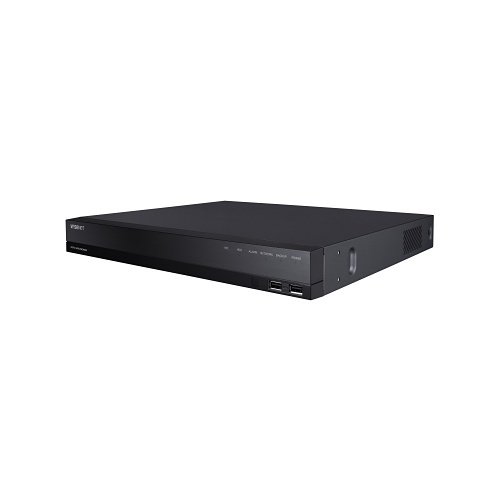

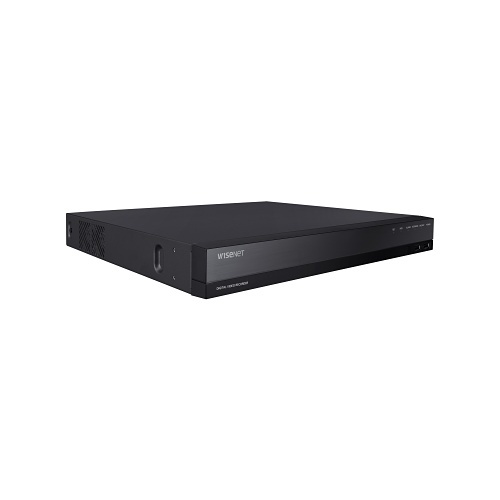

Hanwha HRX-1634-10TB 5-in-1 16CH Pentabrid DVR, 10TB, Video Surveillance Systems

HRX-1634 | SQ-163410

Please sign in to view pricing, availability, and to add to cart.

Overview

Specifications

Documents

Product Overview

The Hanwha HRX-1634-10TB is a 5-in-1 16 Channel Pentabrid DVR designed for comprehensive video surveillance systems. It supports multiple input formats, including AHD, HDTVI, HDCVI, CVBS, and IP, handling up to 18 channels with resolutions up to 8MP. The device includes P2P service with QR code connectivity for easy integration with Wisenet Viewer and Wisenet Mobile apps. It offers robust recording capabilities across various resolutions with a maximum bandwidth of 128Mbps and playback bandwidth of 32Mbps. Additional features include 4 channel audio input, 1 channel audio output, 16 alarm inputs, 4 relay outputs, coaxial control, storage support for up to two SATA HDDs (6TB each), and HDMI/VGA video outputs alongside a spot monitor output.

Main Features

5-in-1 16 Channel Pentabrid DVR
AHD/HDTVI/HDCVI/CVBS/IP inputs
Total 18 Channels (Analog Maximum 16 channel + Network Maximum 2-18 channels, depending on number of analog channels), up to 8MP
P2P service (QR code connect) for easy Wisenet Viewer / Wisenet Mobile app connection
Recording Analog Camera up 8MP(15 fps), 5MP(20 fps), 4MP(30 fps), 2MP(30 fps), 1MP(30 fps), 960H(or 720H)(30 fps), per channel
Recording Bandwidth Max. 128Mbps, Playback Bandwidth 32Mbps
4 channel audio input/ 1 channel audio output, 16 alarm input and 4 relay output
Coaxial control
Up to 2 SATA HDDs (6TB/HDD)
HDMI/VGA video output, 1 X spot monitor output

General Information

Name: Hanwha HRX-1634-10TB 5-in-1 16CH Pentabrid DVR, 10TB, Video Surveillance Systems

Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Hybrid Video Recorders, ADI Pro Rewards

UPC Code:

Country of Origin: Vietnam. Country of origin is subject to change.

Specifications

: ADI Part Number SQ-163410 Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number HRX-1634-10TB Product Model HRX-1634 Product Name 16CH Pentabrid DVR Product Type Video Surveillance Station

: Connectivity Technology Wired Maximum Frame Rate 30fps Number of Channels 16 Power Consumption 40W Storage Capacity 10TB Video Formats H.264, H.265, MJPEG Video Signal Format NTSC, PAL

: Recording Modes continuous, Event, Post-event, Pre-event, Schedule

: TAA Compliant No

: Maximum Video Resolution 3840 x 2160

: Composite Video In Yes Composite Video Out Yes HDMI Yes

: Ethernet Yes Remote Management Yes

: Color Black Depth 12.6" Height 1.7" Weight 9.9lb Width 14.6"

: Input Voltage 12V DC

: Hard Drive Capacity 10TB Recording Formats 4K

: Maximum Resolution 3264 x 2448

: Limited Warranty 3-Year

: Country of Origin VN Environmental Certification CE, FCC, UL Environmentally Friendly Yes Operating System Compatibility Android, Apple iOS
