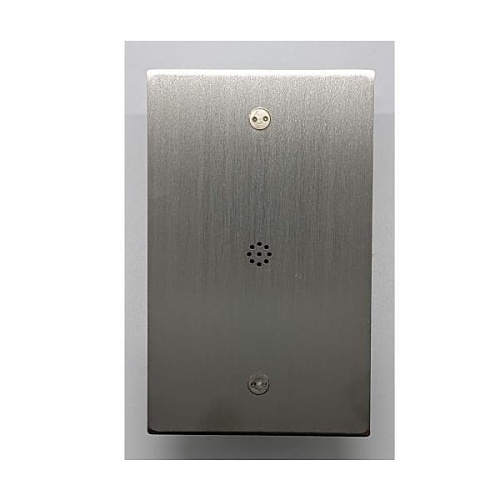

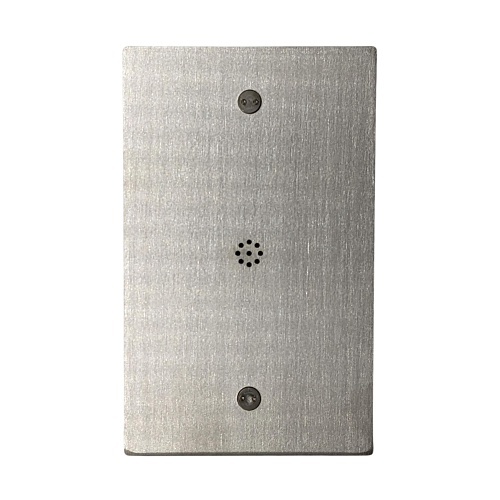

Hanwha HNW-SS-806 Line Level Wall Mounted Microphone, Stainless Steel
HNW-SS-806
|SQ-HNWSS806
Shop All Hanwha Vision
Hanwha HNW-SS-806 Line Level Wall Mounted Microphone, Stainless Steel
HNW-SS-806 | SQ-HNWSS806
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Line level wall mounted microphone. Anti-ligature and vandal-resistant design. 12 gauge stainless steel. Omni-Directional pickup with 12' radius/24' diameter. 12V DC power required at 20mA. 30Hz-15kHz. 2.2k ohms Output Impedance, 60 dB SNR. 4.75"H x 2.5"W.
Main Features
- Line level wall mounted microphone
- Anti-ligature and vandal-resistant
- 12 gauge stainless steel construction
- Omni-Directional pickup with 12' radius
- Requires 12V DC power at 20mA
- Frequency response: 30Hz-15kHz
- Output Impedance: 2.2k ohms
- 60 dB Signal-to-Noise Ratio
- Compact size: 4.75"H x 2.5"W
General Information
Name: Hanwha HNW-SS-806 Line Level Wall Mounted Microphone, Stainless Steel
Category: Hanwha Vision, Video Surveillance, Video Accessories, Microphones
UPC Code: 849688022290
Country of Origin: United States. Country of origin is subject to change.
Specifications
ADI Part Number SQ-HNWSS806 Brand Name Hanwha Vision Manufacturer Part Number HNW-SS-806 Product Name Line level wall mounted microphone Product Type Microphone
Impedance 2200 ohms Sensitivity 60dB
Maximum Frequency Response 1500 Hz Minimum Frequency Response 30Hz
Microphone Technology Omni-directional Microphone Type Wall Mount
Height 4.7" Width 2.5"
