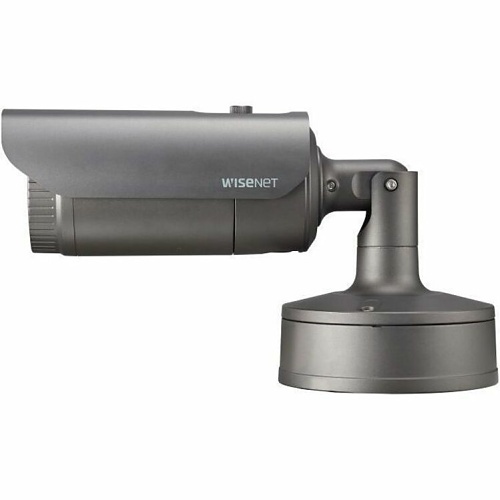

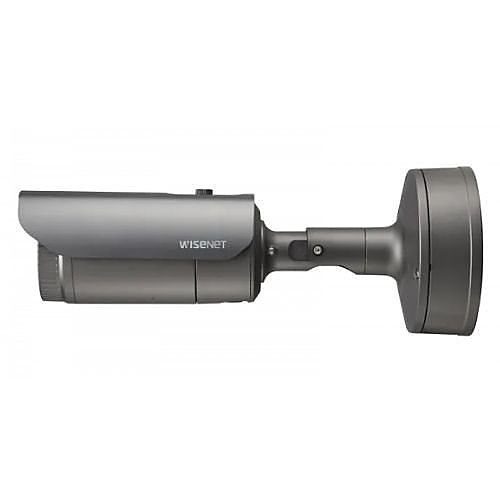

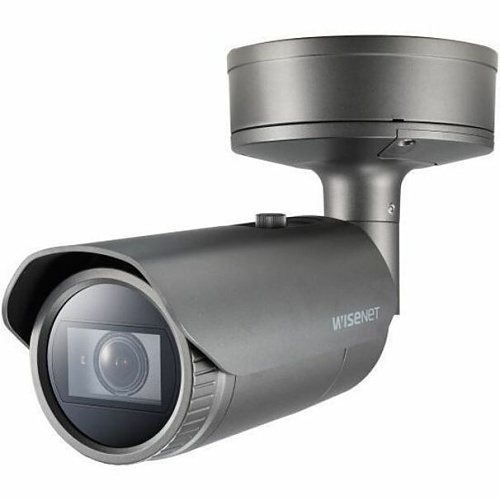

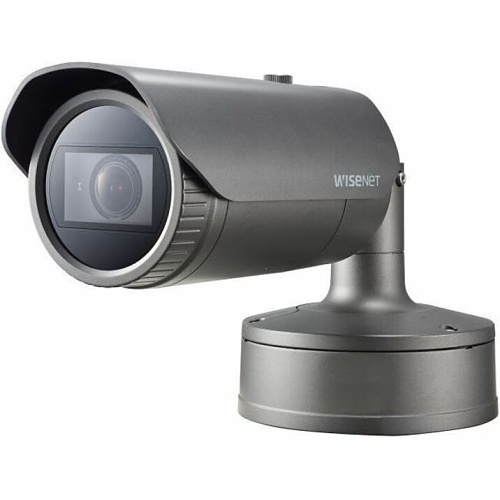

Hanwha PNO-A9081R/KAP Series 8MP AI IR Bullet Camera, 4.5-10mm Varifocal Lens, Dark Gray, TAA Compliant
PNO-A9081R/KAP|SQ-OA981RKAP
Hanwha PNO-A9081R/KAP Series 8MP AI IR Bullet Camera, 4.5-10mm Varifocal Lens, Dark Gray, TAA Compliant
PNO-A9081R/KAP|SQ-OA981RKAP
Key Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0Lux (B/W, IR LED on)
- Day and night(ICR), WDR(120 dB), WiseNRⅡ (Using AI engine), prefer shutter
Key Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0Lux (B/W, IR LED on)
- Day and night(ICR), WDR(120 dB), WiseNRⅡ (Using AI engine), prefer shutter
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0Lux (B/W, IR LED on)
- Day and night(ICR), WDR(120 dB), WiseNRⅡ (Using AI engine), prefer shutter

Hanwha Vision
Hanwha PNO-A9081R/KAP Series 8MP AI IR Bullet Camera, 4.5-10mm Varifocal Lens, Dark Gray, TAA Compliant
PNO-A9081R/KAP | SQ-OA981RKAP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview
Wisenet AI cameras using AI algorithms filter out irrelevant movements caused by environmental changes such as waving trees, shadows, or animals. While conventional cameras detect motion based on its pixels and generate events even if users want to ignore, Deep Learning-based Wisenet AI cameras generate event alarm only for people and vehicles, reducing false alarms for more efficient operation.
Main Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0Lux (B/W, IR LED on)
- Day and night(ICR), WDR(120 dB), WiseNRⅡ (Using AI engine), prefer shutter
- H.265, H.264, MJPEG codec, WiseStreamⅡ, WiseStreamⅢ (Using AI engine)
- Video Analytics based on AI
- Requires camera firmware v1.41.03 or later to use Face Mask Detection
- System requirements
General Information
Name: Hanwha PNO-A9081R/KAP Series 8MP AI IR Bullet Camera, 4.5-10mm Varifocal Lens, Dark Gray, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Bullet Cameras
UPC Code: 8801089171948
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-OA981RKAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNO-A9081R/KAP Product Model PNO-A9081R/KAP Product Name 4K AI IR Bullet Camera Product Series P Product Type Bullet Camera Weight 5.47lb
-
Connectivity Technology Wired Field of View H: 101.4°-45.5°, V: 53.6°-25.5°, D: 120.7°-52.3° Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 4.5mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.2x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 98.43 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
-
Maximum Video Resolution 3840 x 2160
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
-
Longest Shutter Speed 1/5 Second Minimum Illumination 0.005 lux Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Lens Included Yes Maximum Focal Length 10 mm Minimum Aperture f/2.65
-
Remote Management Yes
-
Color Gray Durability Dustproof, Impact Resistant, Waterproof
-
Input Voltage 12V DC
-
Diameter 3.58" Mount Type Backbox Mount, Corner Mount
-
Recording Formats 4K Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Country of Origin KR Features 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, Multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI Impact Protection Rating IK10
