Hanwha PRN-6400DB4-20TB 8K Network Video Recorder (NVR), Intel-Based, 20TB Storage, Supports 64-Channel, H.265/H.264 Compression
PRN-6400DB4
|SQ-PR64DB420
Shop All Hanwha Vision
Hanwha PRN-6400DB4-20TB 8K Network Video Recorder (NVR), Intel-Based, 20TB Storage, Supports 64-Channel, H.265/H.264 Compression
PRN-6400DB4 | SQ-PR64DB420
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

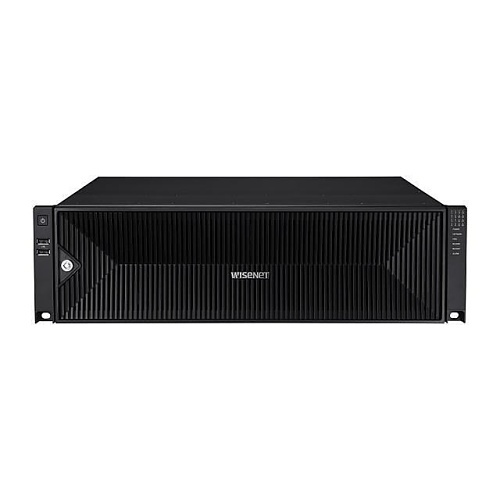

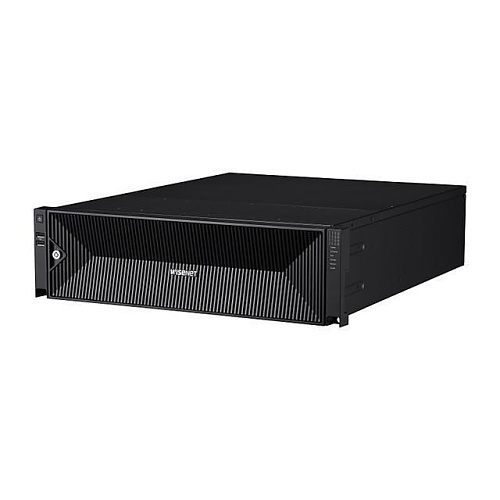

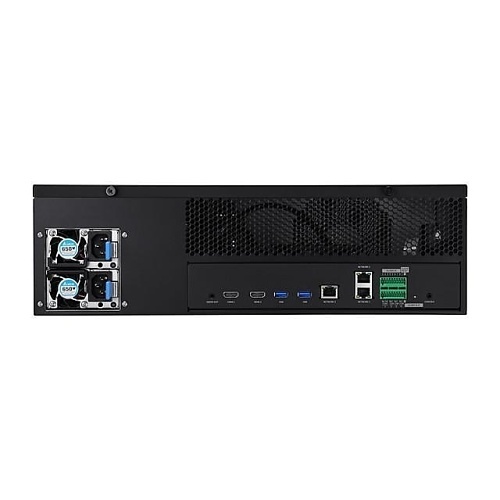

The Hanwha Vision PRN-6400DB4-20TB is a robust 8K NVR system supporting up to 64 channels for license-free recording. It works efficiently with H.265, H.264, and MJPEG codecs and accommodates up to 16 internal SATA HDDs, each up to 10TB, featuring RAID 5 and 6 for reliable data protection. Its automatic recovery backup (ARB) ensures uninterrupted recording with a bandwidth of 400 Mbps and playback up to 32 Mbps. Dual stream recording and WiseStream technology optimize video quality and storage. It offers HDMI/VGA dual display with a maximum 32MP resolution and AI search capabilities for select Hanwha Cameras. NDAA and FCC compliant, it is a top choice for dependable surveillance.
Main Features
- 8K NVR, Up to 64-Channel, License-free recording
- Supports H.265, H.264, and MJPEG CODECs
- Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 and 6 recording
- ARB (Automatic Recovery Backup)
- 400 Mbps Recording / up to 32 Mbps playback
- Dual stream recording, WiseStream technology
- HDMI / VGA Dual display, max. resolution of 32MP recording / display
- Add AI search capabilities to select P, X and Q series Hanwha Cameras
- AI Search (Wisenet AI Cameras only)
- NDAA And FCC compliant
General Information
Name: Hanwha PRN-6400DB4-20TB 8K Network Video Recorder (NVR), Intel-Based, 20TB Storage, Supports 64-Channel, H.265/H.264 Compression
Category: Hanwha Vision, Video Surveillance, Recording Devices & Servers, Network Video Recorders (NVRs)
UPC Code: 849688019245
Country of Origin: Vietnam. Country of origin is subject to change.
Specifications
ADI Part Number SQ-PR64DB420 Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number PRN-6400DB4-20TB Product Model PRN-6400DB4 Product Name 64CH 8K 400Mbps H.265 AI NVR Product Type Video Surveillance Station
Maximum Frame Rate 1920fps Number of Channels 64 Storage Capacity 20TB Video Formats H.264, H.265, MJPEG
Maximum Video Resolution 3840 x 2160
HDMI Yes Number of HDMI Outputs 2
Ethernet Yes Ethernet Technology Gigabit Ethernet
Color Black Depth 22.5" Height 5.2" Weight 31.5lb Width 17.3"
Input Voltage 100-240V AC Maximum Power Consumption 285W
Hard Drive Capacity 20TB
Limited Warranty 3-Year
Country of Origin VN Operating System Compatibility macOS 10.13, Windows 10
