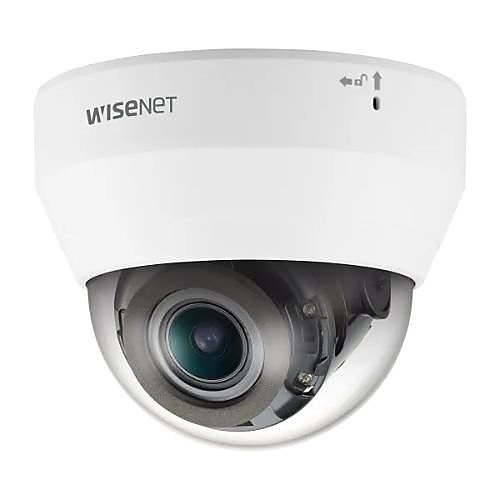

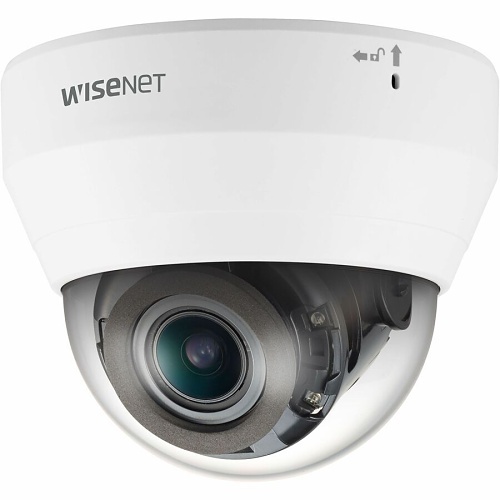

Hanwha QND-6082R1/KAP Series 2MP Indoor IR Dome IP Camera, 3.2-10mm Varifocal Lens, White, TAA Compliant
QND-6082R1/KAP
|SQ-QD62R1KAP
Shop All Hanwha Vision
Hanwha QND-6082R1/KAP Series 2MP Indoor IR Dome IP Camera, 3.2-10mm Varifocal Lens, White, TAA Compliant
QND-6082R1/KAP | SQ-QD62R1KAP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Network Dome Camera with Night Vision.
Specifications
ADI Part Number SQ-QD62R1KAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number QND-6082R1/KAP Product Model QND-6082R1/KAP Product Name 2MP IR Indoor Dome Product Series Q Product Type Dome Camera
Connectivity Technology Wired Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 109° Field of View (Vertical) 57.4° Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 3.2mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3.1x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 65.62 ft Wide Dynamic Range Yes
TAA Compliant Yes
Maximum Video Resolution 1920 x 1080
Maximum Operating Temperature 131°F Minimum Operating Temperature 14°F Operating Humidity 90% RH
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/12,000 Second
Network (RJ-45) Yes
Lens Included Yes Maximum Focal Length 10mm Minimum Aperture f/2.9
Remote Management Yes
Color White Weight 0.71lb
Input Voltage 12V DC
Diameter 4.72" Mount Type Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
Recording Formats Full HD Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Country of Origin KR Features 0.03Lux (Color), 0Lux (B/W, IR LED on), 3.2 - 10mm (3.1x) varifocal lens, H.265, H.264, MJPEG codec supported, Multiple streaming, Hallway view (90°/270°), LDC support, IR viewable length 20m, PoE/12VDC, Maximum 2 MP (1920 x 1080) resolution, Maximum 30fps at 2MP all resolutions (H.265/H.264), Micro SD/SDHC/SDXC memory slot (Max. 128GB), Motion detection, Tampering, Defocus detection Indoor/Outdoor Indoor
