Hanwha QND-8010R/KAP Series 5MP IR Dome IP Camera, 2.8mm Fixed Lens, White, TAA Compliant
QND-8010R/KAP|SQ-QD801RKAP
Hanwha QND-8010R/KAP Series 5MP IR Dome IP Camera, 2.8mm Fixed Lens, White, TAA Compliant
QND-8010R/KAP|SQ-QD801RKAP
Key Features
- 5MP Resolution
- Built-in 2.8 mm fixed lens
- 30 fps At all resolutions (H.265/H.264)
Key Features
- 5MP Resolution
- Built-in 2.8 mm fixed lens
- 30 fps At all resolutions (H.265/H.264)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 5MP Resolution
- Built-in 2.8 mm fixed lens
- 30 fps At all resolutions (H.265/H.264)
Hanwha Vision
Hanwha QND-8010R/KAP Series 5MP IR Dome IP Camera, 2.8mm Fixed Lens, White, TAA Compliant
QND-8010R/KAP | SQ-QD801RKAP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

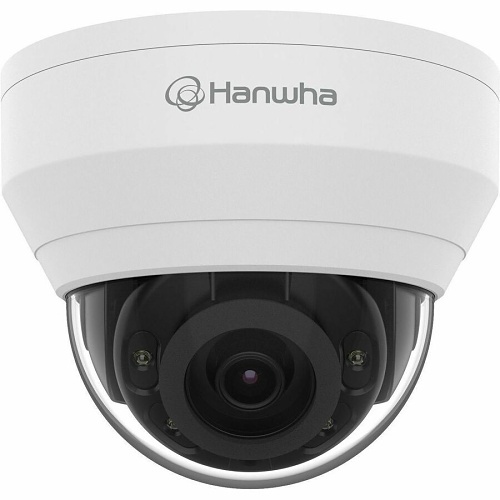

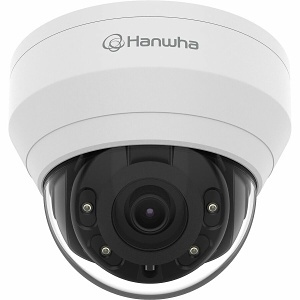

Monitor your space with the white QND-8010R 5MP Network Dome Camera from Hanwha Techwin.
Main Features
- 5MP Resolution
- Built-in 2.8 mm fixed lens
- 30 fps At all resolutions (H.265/H.264)
- H.265, H.264, MJPEG Codec supported, Multiple streaming
- Day and night (ICR), WDR (120dB)
- Defocus detection, directional detection, motion detection, Enter/Exit, tampering, virtual line
- Micro SD (128GB) memory slot, PoE
- IR Viewable length 20m
- Hallway view support
- Analog video out for easy installation
General Information
Name: Hanwha QND-8010R/KAP Series 5MP IR Dome IP Camera, 2.8mm Fixed Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089162977
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-QD801RKAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number QND-8010R/KAP Product Model QND-8010R/KAP Product Name 5 MP Network IR Dome Camera with 2.8mm Lens Product Series Q Product Type Dome Camera Weight 0.79 lb
-
Connectivity Technology Wired Field of View H: 104.7°, V: 76.5°, D: 136.0° Lens Type Fixed Focus Maximum Aperture f/2.0 Maximum Frame Rate 30 fps Minimum Focal Length 2.8 mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.264H, H.264M, H.265, H.265H, H.265M, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 65.62 ft Wide Dynamic Range Yes
-
TAA Compliant Yes
-
Maximum Video Resolution 2592 x 1944
-
Maximum Operating Temperature 122°F Minimum Operating Temperature 14°F Operating Humidity <90% RH
-
Longest Shutter Speed 1/5 Second Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Lens Included Yes Maximum Focal Length 2.8 mm
-
Remote Management Yes
-
Color White
-
Diameter 4.35" Mount Type Ceiling Mount, Gooseneck Mount, Pendant Mount, Wall Mount
-
Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Country of Origin KR Features 30fps at all resolutions (H.265/H.264), 5 MP resolution, Analog video out for easy installation, Built-in 2.8mm fixed lens, Day and Night (ICR), WDR (120dB), Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line, H.265, H.264, MJPEG codec supported, Multiple streaming, Hallway view support, IR viewable length 20m, Micro SD (128GB) memory slot, PoE
