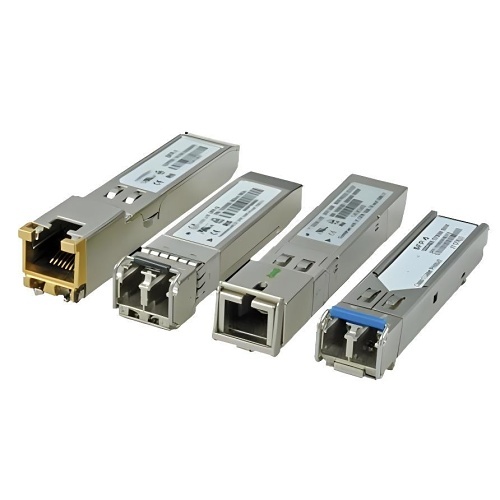

Hanwha SFP-FLCS220 SFP Module with Copper and Optical Fiber Ethernet Connectors
SFP-FLCS220
|SQ-SFPFLS220
Hanwha SFP-FLCS220 SFP Module with Copper and Optical Fiber Ethernet Connectors
SFP-FLCS220 | SQ-SFPFLS220
Please sign in to view pricing, availability, and to add to cart.
Product Overview
The SFP-FLCS220 is an MSA Compliant Small Form-Factor Pluggable (SFP) module that allows for an electrical interface when using a managed switch, unmanaged switch or media converter. These interchangeable SFP modules are available for use with Single Mode optical fiber. The optical fiber SFP module is available in Fast Ethernet for two fibers. They are available with LC optical connectors. The SFP modules offer 1310nm wavelengths and optical power budget to allow distances up to 20 kilometers. These SFP modules are industrially rated to perform in the most difficult operating environments.
Main Features
- MSA Compliant SFP Module
- Supports Copper & Optical Fiber Ethernet
- Compatible with Managed & Unmanaged Switches
- Interchangeable for Single Mode Fiber
- Fast Ethernet for Two Fibers
- LC Optical Connectors
- 1310nm Wavelengths
- Up to 20km Distance
- Industrial Grade Performance
General Information
Specifications
ADI Part Number SQ-SFPFLS220 Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number SFP-FLCS220 Product Name SFP Module Product Type SFP
Application/Usage Data Networking, Optical Network Fiber Optic Mode Single-mode Media Type Supported Optical Fiber
NDAA Compliant Yes
Connector Type LC/UPC Interfaces/Ports Details 1 x LC 100Base-X Network Number of Ports 1
Network Technology 100Base-X
Ethernet Technology Fast Ethernet
Compatibility MSA Compliant Environmental Certification RoHS, WEEE Environmentally Friendly Yes
