Key Features
- Compatible Camera, TNB-9000
- Materials Body/Sun shield, Aluminum, Front and Rear cap, ABS
- Operating Temperature -50⁰C ~ +60⁰C(-58⁰F ~ +140⁰F) / 10-100% RH (condensing)
Key Features
- Compatible Camera, TNB-9000
- Materials Body/Sun shield, Aluminum, Front and Rear cap, ABS
- Operating Temperature -50⁰C ~ +60⁰C(-58⁰F ~ +140⁰F) / 10-100% RH (condensing)
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Compatible Camera, TNB-9000
- Materials Body/Sun shield, Aluminum, Front and Rear cap, ABS
- Operating Temperature -50⁰C ~ +60⁰C(-58⁰F ~ +140⁰F) / 10-100% RH (condensing)
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

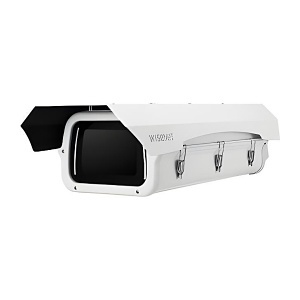

Discover the Hanwha Vision SHB-9000H, designed specifically for the TNB-9000 surveillance camera. Its robust aluminum body and ABS front and rear caps ensure durability. This camera housing operates reliably in extreme temperatures from -50°C to +60°C (-58°F to +140°F) and can withstand 10-100% humidity with condensation. Weighing 6.2kg (13.67 lb) and finished in white, it offers versatile power options, including 100-240V AC input and 12V DC output or HPoE passthrough via injector. Elevate your security setup with this sturdy, reliable solution today!
Main Features
- Compatible Camera, TNB-9000
- Materials Body/Sun shield, Aluminum, Front and Rear cap, ABS
- Operating Temperature -50⁰C ~ +60⁰C(-58⁰F ~ +140⁰F) / 10-100% RH (condensing)
- Weight, 6.2kg(13.67 lb)
- Color, White
- 100-240v AC input, 12v DC output to Camera or HPoE passthrough from injector
General Information
Name: Hanwha SHB-9000H Box Camera Housing
Category: Hanwha Vision, Video Surveillance, Housings & Mounts, Camera Mounts
UPC Code: 8801089190956
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-SHB9000H Brand Name Hanwha Vision Manufacturer Hanwha Group Manufacturer Part Number SHB9000H Product Model SHB-9000H Product Name Box Camera Housing Product Type Camera Enclosure Weight 13.67 lb
-
ADI Part Number Replaces SQ-SHBD9000H Model Number Replaces SHB-D-9000H
-
Color White Depth 27.6" Height 7.2" Material ABS, Aluminum Width 11.8"
-
Input Voltage 100-240V AC Maximum Power Consumption 62W
-
Compatibility Hanwha TNB-9000 Surveillance Camera Country of Origin KR Environmental Certification UL Features 100-240v AC input, 12v DC output to camera or HPoE passthrough from injector, Color - White, Compatible camera - TNB-9000, Materials Body/Sun shield - Aluminum, Front and Rear cap - ABS, Operating Temperature -50â°C ~ +60â°C(-58â°F ~ +140â°F) / 10-100% RH (condensing), Weight - 6.2kg(13.67 lb)
