Hanwha PNV-A9081R/KAP Series 4K AI Outdoor IR Vandal Dome IP Camera, 4.5-10mm Varifocal Lens, White, TAA Compliant
PNV-A9081R/KAP|SQ-VA981RKAP
Hanwha PNV-A9081R/KAP Series 4K AI Outdoor IR Vandal Dome IP Camera, 4.5-10mm Varifocal Lens, White, TAA Compliant
PNV-A9081R/KAP|SQ-VA981RKAP
Key Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On)
- Day and Night (ICR), WDR (120 dB), WiseNR II (Using AI engine), Prefer Shutter
Key Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On)
- Day and Night (ICR), WDR (120 dB), WiseNR II (Using AI engine), Prefer Shutter
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On)
- Day and Night (ICR), WDR (120 dB), WiseNR II (Using AI engine), Prefer Shutter
Hanwha Vision
Hanwha PNV-A9081R/KAP Series 4K AI Outdoor IR Vandal Dome IP Camera, 4.5-10mm Varifocal Lens, White, TAA Compliant
PNV-A9081R/KAP | SQ-VA981RKAP
Please sign in to view pricing and availability and to add to cart.
Overview
Specifications
Documents
Product Overview

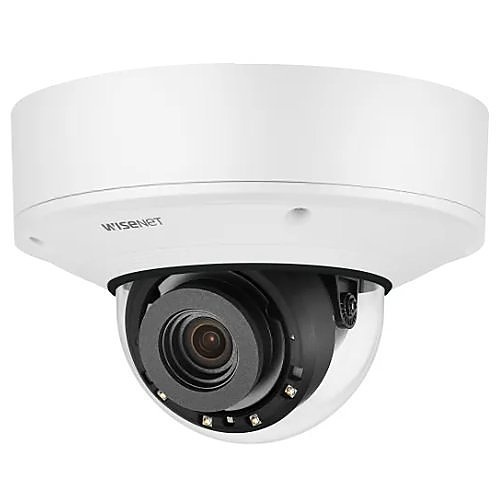

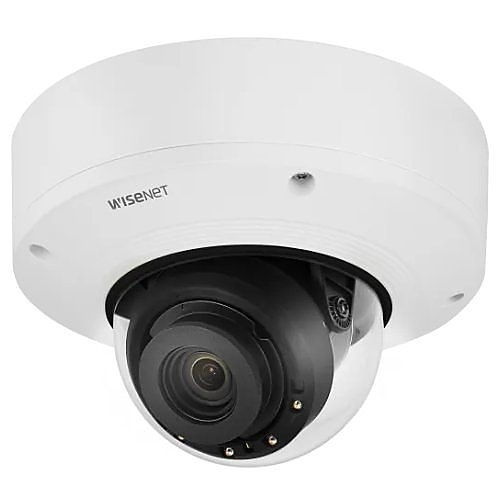

Monitor an indoor or outdoor space the white PNV-A9081R 4K UHD Network Dome Camera from Hanwha Techwin. This unit uses a 1/1.8" CMOS sensor to capture 3840 x 2160 resolution video at 30fps. IR LEDs provide up to 98' of night vision. The camera's 4.5-10mm motorized varifocal lens delivers a 101.4 to 45.5° horizontal field of view and 2.2x optical zoom. Two-way audio is possible thanks to an audio input and output. Dual memory card slots support microSD/SDHC/SDXC cards for a total storage capacity of 512GB (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
Main Features
- Maximum 4K resolution
- 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On)
- Day and Night (ICR), WDR (120 dB), WiseNR II (Using AI engine), Prefer Shutter
- H.265, H.264, MJPEG codec, WiseStream II, WiseStream III (Using AI engine)
- Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot
- 98' IR Viewable Length
- 4.5 to 10mm (2.2x) motorized varifocal lens
- Modular structure for easy installation
- Requires camera firmware v1.41.03 or later to use Face Mask Detection
- Digital image stabilization with built-in Gyro sensor
General Information
Name: Hanwha PNV-A9081R/KAP Series 4K AI Outdoor IR Vandal Dome IP Camera, 4.5-10mm Varifocal Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089171788
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-VA981RKAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number PNV-A9081R/KAP Product Model PNV-A9081R/KAP Product Name 4K AI IR Vandal Dome Product Series P Product Type Dome Camera Weight 4.19lb
-
Connectivity Technology Wired Effective Camera Resolution 8MP Field of View H: 101.4°-45.5°, V: 53.6°-25.5°, D: 120.7°-52.3° Lens Type Varifocal Maximum Aperture f/1.6 Maximum Frame Rate 30fps Minimum Focal Length 4.5mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.2x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Night Vision Distance 98.43 ft Wide Dynamic Range Yes
-
Ingress Protection Rating IP66, IP67, IP6K9K TAA Compliant Yes
-
Maximum Video Resolution 3840 x 2160
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 90% RH
-
Longest Shutter Speed 1/5 Second Minimum Illumination 0.005 lux Shortest Shutter Speed 1/12,000 Second
-
Network (RJ-45) Yes
-
Focal Length 4.5-10 mm Lens Included Yes Maximum Focal Length 10 mm Minimum Aperture f/2.65
-
Remote Management Yes
-
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome
-
Input Voltage 12V DC
-
Diameter 7.09" Mount Type Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
-
Recording Formats 4K Storage Type Memory Card
-
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, Multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI Impact Protection Rating IK10 Indoor/Outdoor Outdoor
