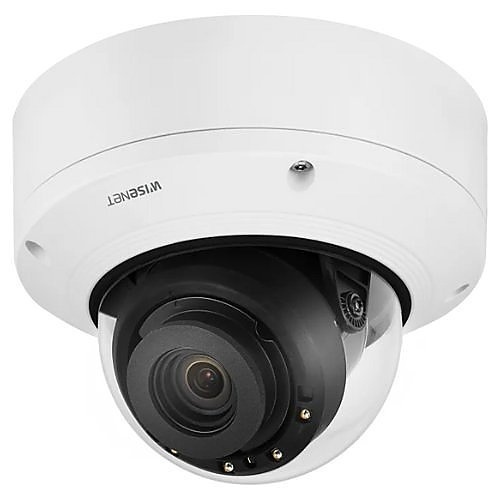

Hanwha XND-8082RV/KAP Series 6MP Indoor IR Vandal Dome IP Camera, 2.8-8.4mm Motorized Varifocal Lens, White, TAA Compliant
XND-8082RV/KAP
|SQ-X882RVKAP
Shop All Hanwha Vision
Hanwha XND-8082RV/KAP Series 6MP Indoor IR Vandal Dome IP Camera, 2.8-8.4mm Motorized Varifocal Lens, White, TAA Compliant
XND-8082RV/KAP | SQ-X882RVKAP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Wisenet X series powered by Wisenet 7 network indoor vandal dome camera features a modular structure, 6MP at 30fps, motorized varifocal lens 3x (2.8 - 8.4mm) (114° - 40.2°). 131 foot IR viewable range for low light/no light monitoring. Triple codec H.265/H.264/MJPEG with WiseStream II technology reduces bandwidth and storage requirements.
Main Features
- 6MP (3328x1872) resolution
- 2.8 to 8.4 mm 3x motorized varifocal lens
- 131' IR viewable range for low light/no light monitoring
- 30fps at all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, multiple streaming
- Day and Night (ICR), extremeWDR, Defog
- Shock detection, Loitering, Directional detection, Fefocus detection, Fog detection, Face/Upper body detection, Audio detection, Digital auto tracking, Sound classification, Tampering, Motion detection, Handover, Audio event playback
- Dual SD/SDHC/SDXC memory slots (Total maximum 512GB)
- Hallway view, WiseStream II support, IP52, IK10
- LDC support (Lens Distortion Correction)
General Information
Name: Hanwha XND-8082RV/KAP Series 6MP Indoor IR Vandal Dome IP Camera, 2.8-8.4mm Motorized Varifocal Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089189844
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-X882RVKAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XND-8082RV/KAP Product Model XND-8082RV/KAP Product Name 6MP Vandal-Resistant Indoor IR Network Dome Camera Product Series X Product Type Dome Camera
Connectivity Technology Wired Effective Camera Resolution 6MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 114° Field of View (Vertical) 62° Maximum Aperture f/1.2 Maximum Frame Rate 30fps Minimum Focal Length 2.8mm Night Vision Yes Night Vision Type Infrared Optical Zoom 3x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 131.23 ft Wide Dynamic Range Yes
Ingress Protection Rating IP52 TAA Compliant Yes
Maximum Video Resolution 3328 x 1872
Maximum Operating Temperature 140°F Minimum Operating Temperature -13°F Operating Humidity 95% RH (Non-condensing)
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.005 lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 2.8-8.4mm Lens Included Yes Maximum Focal Length 8.4mm Minimum Aperture f/2.8
Remote Management Yes
Color White Durability Dust Resistant, Impact Resistant, Vandal Resistant Form Factor Dome Weight 3.53lb
Input Voltage 12V DC
Diameter 6.3" Mount Type Ceiling Mount, Corner Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount
Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Country of Origin KR Features Audio Compression, Auto Tracking, Back Light Compensation (BLC), Built-in HLC, Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Face Detection, Motion Detection, Privacy Masking, Shock Detection Impact Protection Rating IK10 Indoor/Outdoor Indoor Package Contents - 6MP Vandal-Resistant Indoor IR Network Dome Camera
- Ivory Skin
