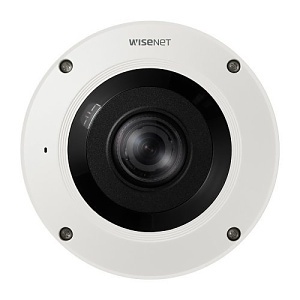

Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant
XNF-9010RV/KAP
|SQ-XF91RVKAP
Shop All Hanwha Vision
Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant
XNF-9010RV/KAP | SQ-XF91RVKAP
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Wisenet Fisheye camera adopted 12MP sensor offering clean and vivid images with 360° coverage. Users can choose between wall mounting mode and overhead mounting mode depending on the installation environment, and monitor areas in detail.
Main Features
- Network camera - Helps achieve high-quality video results
- Up to 3584 x 1792 resolution for surveillance in real-time
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 1.08 mm maximum focal length provides incredible detail and how effective is your network camera
- f/2.2 maximum aperture for reliable, detailed, and sharp output with added dependability
- Up to 32.81 ft of night vision
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- Fixed lens type for sharp, detailed focus to ensure maximum surveillance usability
- DC power source type for your network camera provides optimal performance with maximum usability
- Hanging Mount mount type allows convenient, easy usage with maximum efficiency
General Information
Name: Hanwha XNF-9010RV/KAP Series 12MP 360° Outdoor Fisheye IP Camera, 1.08mm Lens, White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, Panoramic Cameras
UPC Code: 8801089193438
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XF91RVKAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNF-9010RV/KAP Product Model XNF-9010RV/KAP Product Name X series 12 MP sensor 360° Outdoor Fisheye Product Series X Product Type Fisheye Camera
Connectivity Technology Wired Effective Camera Resolution 12MP Field of View Diagonal, Horizontal, Vertical Field of View (Horizontal) 187° Field of View (Vertical) 187° Lens Type Fixed Maximum Aperture f/2.2 Maximum Frame Rate 30fps Minimum Focal Length 1.8mm Night Vision Yes Night Vision Type Infrared Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 32.81 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66 TAA Compliant Yes
Maximum Video Resolution 3008 x 3008
Maximum Operating Temperature 140°F Minimum Operating Temperature -40°F Operating Humidity 95% RH
Longest Shutter Speed 1/12000 Second Shortest Shutter Speed 1/5 Second
Network (RJ-45) Yes
Focal Length 1.08mm Lens Included Yes Maximum Focal Length 1.08mm
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Fisheye Weight 2.43lb
Input Voltage 12V DC
Diameter 6.3" Mount Type Pendant Mount
Storage Type Memory Card
Analog Video Signal Format CVBS Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Country of Origin KR Features Audio Detection, Back Light Compensation (BLC), Day/Night, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Motion Detection, Privacy Masking, White Balance, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
