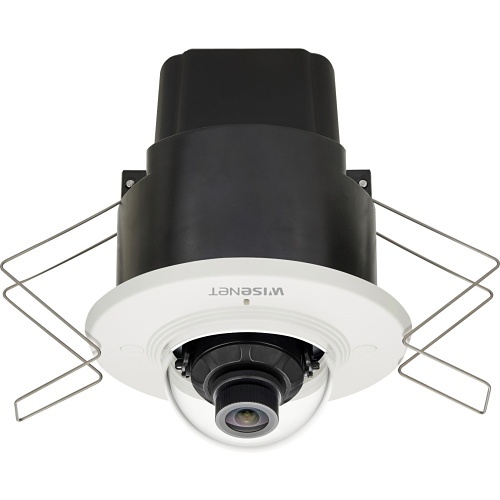

Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F
|SQ-XND8020F
Shop All Hanwha Vision
Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
XND-8020F | SQ-XND8020F
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Wisenet X powered by Wisenet 5 network flush mount dome camera, 5MP at 30fps, 3.7mm fixed lens (97.5°), triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification and business analytics, built-in Mic, magnetic cover, electronic D/N, SD card, hallway view, HLC, defog detection, DIS, PoE only.
Main Features
- 5MP at 30 fps
- Triple codec H.265/H.264/MJPEG
- 3.7 mm fixed lens
- Wide dynamic range 120dB
- On-board analytics (business/audio and video)
- Digital image stabilization
- Magnetic cover and a built-in mic
- Built-in retail business intelligence analytics
- USB for easy installation
General Information
Name: Hanwha XND-8020F X-Series 5MP Flush-Mount Compact Indoor Dome Camera, 3.7mm Fixed Lens, Black/Ivory
Category: Hanwha Vision, Video Surveillance, IP Cameras, Dome Cameras
UPC Code: 8801089125255
Country of Origin: Korea. Country of origin is subject to change.
Specifications
ADI Part Number SQ-XND8020F Brand Name Hanwha Vision Country of Origin KR Manufacturer Hanwha Vision Manufacturer Part Number XND-8020F Product Model XND-8020F Product Name 5MP Indoor Flush Mount Compact Dome Camera Product Series X Product Type Dome Camera
Connectivity Technology Wired Field of View Diagonal, Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.6 Video Formats H.264, H.265, MJPEG, MPEG-4 Wide Dynamic Range Yes
Image Sensor Type CMOS
NDAA Compliant Yes
Maximum Video Resolution 2560 x 1920 Number of Sensors 1
Operating Humidity 90% RH
Longest Shutter Speed 1/12000 Second Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 3.7mm Lens Included Yes
Remote Management Yes
Color Ivory Form Factor Dome
Input Voltage 12V DC
Mount Type Flush Mount
Recording Formats HD Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Features 2D Digital Noise Reduction (2DNR), 3D Digital Noise Reduction, Audio Compression, Audio Detection, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Highlight Compensation (HLC), Privacy Masking, SD Card Local Storage, Wide Dynamic Range Indoor/Outdoor Indoor
