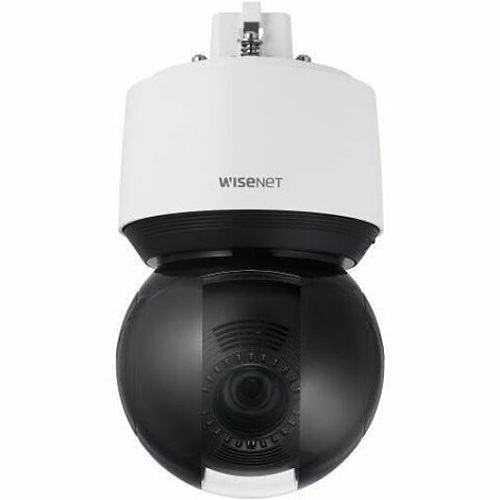

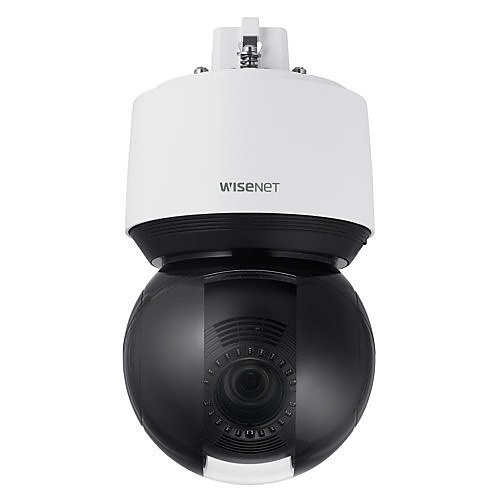

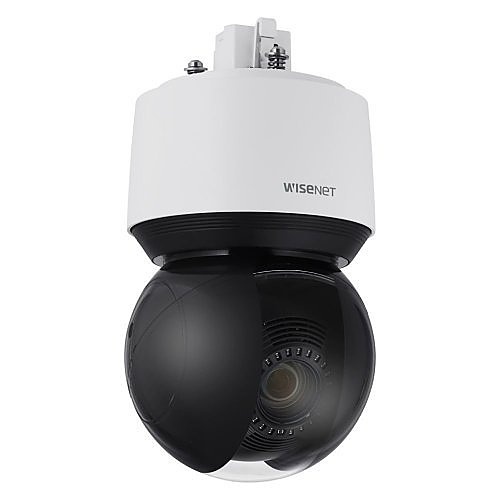

Hanwha XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera, 40x Optical Zoom Lens, Black/Signal White, TAA Compliant
XNP-6400/KAP|SQ-XP6400KAP
Hanwha XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera, 40x Optical Zoom Lens, Black/Signal White, TAA Compliant
XNP-6400/KAP|SQ-XP6400KAP
Key Features
- 2MP resolution
- 40X optical zoom
- Increased look-up tilt range
Key Features
- 2MP resolution
- 40X optical zoom
- Increased look-up tilt range
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
- 2MP resolution
- 40X optical zoom
- Increased look-up tilt range
Hanwha Vision
Hanwha XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera, 40x Optical Zoom Lens, Black/Signal White, TAA Compliant
XNP-6400/KAP | SQ-XP6400KAP
Please sign in to view pricing and availability and to add to cart.
Accessories
Video Surveillance Monitors
ADI # 0E-20LED2
MODEL # 0E-20LED2
0E-20LED2|0E-20LED2
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB700IP12
MODEL # WT-WB700IP12
WT-WB700IP12|WT-WB700IP12
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Network Video Recorders (NVRs)
ADI # VM-LUVR8CH6T
MODEL # VM-LUVR8CH6T
VM-LUVR8CH6T|VM-LUVR8CH6T
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
PTZ PLUS supports remarkable performance with new in-house developed 6MP 40x zoom lens. Experience powerful new PTZ’s performance. PTZ PLUS supports object (person or vehicle) auto tracking based on AI deep-learning algorithm. And by simply right-clicking an object on a screen, it locks the object and tracks the targeted object. (target-lock tracking).
Main Features
- 2MP resolution
- 40X optical zoom
- Increased look-up tilt range
- 360° endless pan
- Triple codec H.265/H.264/MJPEG
- WiseStream II technology
- extreme WDR
- advanced video analytics and sound classification (Optional SPM-4210 I/O box required for audio detection/classification)
- true D/N
- dual SD card slots
General Information
Name: Hanwha XNP-6400/KAP Series 2MP WDR PTZ Plus IP Camera, 40x Optical Zoom Lens, Black/Signal White, TAA Compliant
Category: Hanwha Vision, Video Surveillance, IP Cameras, PTZ Security Cameras
UPC Code: 8801089182036
Country of Origin: Korea. Country of origin is subject to change.
Specifications
-
ADI Part Number SQ-XP6400KAP Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNP-6400/KAP Product Model XNP-6400/KAP Product Name 2MP, 40x PTZ camera Product Series X Product Type PTZ Camera Weight 6.17lb
-
Connectivity Technology Wired Effective Camera Resolution 2MP Field of View H: 65.66°(Wide)~1.88°(Tele) / V: 39.40°(Wide)~1.09°(Tele) Maximum Aperture F1.6 Maximum Frame Rate 60 fps Minimum Focal Length 4.25mm Night Vision Yes Night Vision Type Infrared Optical Zoom 40x Video Formats H.264, H.265, MJPEG
-
Image Sensor Type CMOS Wide Dynamic Range Yes
-
Ingress Protection Rating IP66 TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1080
-
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity <95% RH (Non Condensing)
-
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.05 lux Shortest Shutter Speed 2 Second
-
Network (RJ-45) Yes
-
Focal Length 4.25-170 mm Lens Included Yes Maximum Focal Length 170 mm Minimum Aperture f/4.95
-
Remote Management Yes
-
Color Black, White Durability Dustproof, Impact Resistant, Waterproof Form Factor PTZ
-
Diameter 6.2" Mount Type Desktop Mount, Rack Mount, Wall Mount
-
Recording Formats Full HD Storage Type Memory Card
-
Maximum Resolution 1280 x 720
-
Limited Warranty 3-Year
-
Country of Origin KR Features Back Light Compensation (BLC), Day/Night, Defog, Digital Image Stabilization, Digital Noise Reduction, Gain Control, Highlight Compensation (HLC), Motion Detection, Privacy Masking, Wide Dynamic Range Impact Protection Rating IK10
