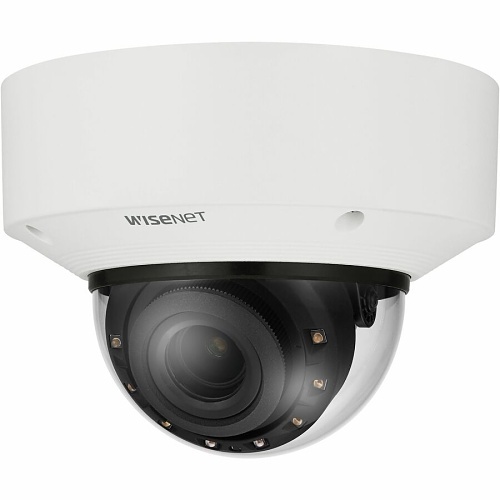

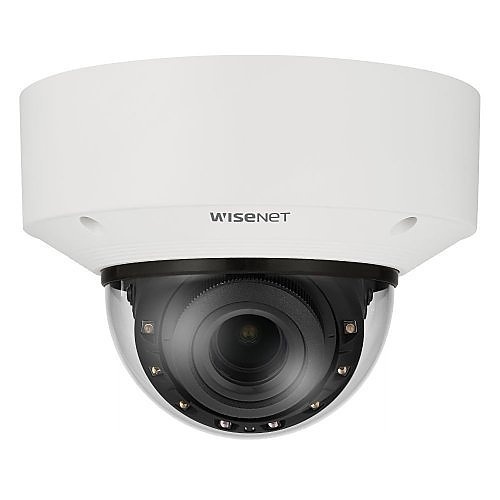

Hanwha XNV-C9083R/KEX Series 4K Outdoor IR Vandal Dome IP Camera, 4.4 9.3mm Lens, White, TAA Compliant
Hanwha XNV-C9083R/KEX Series 4K Outdoor IR Vandal Dome IP Camera, 4.4 9.3mm Lens, White, TAA Compliant
Hanwha XNV-C9083R/KEX Series 4K Outdoor IR Vandal Dome IP Camera, 4.4 9.3mm Lens, White, TAA Compliant
XNV-C9083R/KEX | SQ-XV983RKEX
Please sign in to view pricing and availability and to add to cart.
Product Overview
The new X series cameras utilize AI to detect and classify people, vehicles, faces, license plates and more in real-time. With a range of available resolutions from 2MP to 4K, the cameras’ deep-learning algorithms can reliably identify multiple distinct objects. Reduce false alarms due to none interesting motion, like wind-blown trees, shadows, or animals. Analytics become a reliable second pair of eyes to operators helping them know where to look for important real-time events, while making post-event forensic searches highly efficient.
Main Features
- 4K resolution
- 4.4~9.3 mm (2.1x) motorized varifocal
- Color: 0.04 Lux (F1.3, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 30 fps (H.265/H.264)
- WiseIR: IR viewable length 40 m (131.23 ft)
- Day & Night (ICR), extremeWDR (120 dB)
- Hard-coated dome bubble
- WiseNRII (Based on AI engine), WiseStream III (Based on AI engine)
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle - car, truck, bus, bicycle, motorcycle/License plate)
- IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
General Information
Specifications
ADI Part Number SQ-XV983RKEX Brand Name Hanwha Vision Manufacturer Hanwha Vision Manufacturer Part Number XNV-C9083R/KEX Product Model XNV-C9083R/KEX Product Name 4K IR Outdoor Vandal Dome AI Camera Product Series X Product Type Dome Camera Weight 3.20lb
Connectivity Technology Wired Effective Camera Resolution 8MP Field of View H: 113°-47°, V: 58°-26°, D: 138°-54° Maximum Aperture f/1.3 Maximum Frame Rate 30fps Minimum Focal Length 4.4mm Night Vision Yes Night Vision Type Infrared Optical Zoom 2.1x Video Formats H.264, H.265, MJPEG
Image Sensor Type CMOS Night Vision Distance 131.23 ft Wide Dynamic Range Yes
Ingress Protection Rating IP66, IP67 TAA Compliant Yes
Maximum Video Resolution 3840 x 2160
Maximum Operating Temperature 131°F Minimum Operating Temperature -40°F Operating Humidity 100% RH (Condensing)
Longest Shutter Speed 1/12000 Second Minimum Illumination 0.004 lux Shortest Shutter Speed 2 Second
Network (RJ-45) Yes
Focal Length 4.4-9.3 mm Lens Included Yes Maximum Focal Length 9.3 mm Minimum Aperture f/2.15
Remote Management Yes
Color White Durability Dustproof, Impact Resistant, Waterproof Form Factor Dome
Input Voltage 12V DC
Diameter 6.3" Mount Type Desktop Mount, Rack Mount, Wall Mount
Recording Formats 4K Storage Type Memory Card
Maximum Resolution 1280 x 720
Limited Warranty 3-Year
Country of Origin KR Features Audio Detection, Day/Night, Defog, Digital Image Stabilization, Face Detection, Human Detection, Motion Detection, Shock Detection, Tamper Detection, Vehicle Detection, Wide Dynamic Range Impact Protection Rating IK10 Indoor/Outdoor Outdoor
