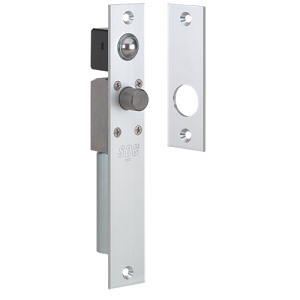

SDC 1490AIY Narrow Right Angle Electric Bolt Lock, Failsafe, Dull Black
1490AIY
|SZ-1490AIY
Shop All Security Door Controls
SDC 1490AIY Narrow Right Angle Electric Bolt Lock, Failsafe, Dull Black
1490AIY | SZ-1490AIY
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Designed and patented by SDC, Spacesaver® right angle bolt locks represent a fundamental innovation in electric locking technology for access control applications. Spacesaver® bolts project at right angles to the lock mechanism, allowing installation of Spacesaver® locks, by means of a simple mortise cutout, in virtually any standard frame, or in most door lock stiles. With the entire lock concealed, aesthetic acceptability is complete, security is greater and installation in old or new construction is fast, easy and economical. All Spacesaver® locks are equipped with stainless steel bolts, specification grade solenoids and automatic relock ball switches. Bolts rotate freely, making attempts to tamper or cut extremely difficult. Specification grade solenoids facilitate superior overall performance in both force and longevity, when compared to commercial grade solenoids. Automatic relock ball switches keep the bolt retracted while the door is open. The door depresses the ball switch on closure, causing the bolt to project automatically, locking the door. Additionally, ball switches are field adjustable to compensate for wide door gap and bidirectional to permit use on swinging and sliding doors
Main Features
- Dull Black
- Concealed mortise right angle design
- Stainless steel bolt
- Specification grade solenoid
- Automatic relock
- Field adjustable and bidirectional automatic relock ball switch
- Field selectable dual voltage
- Voltage and current spike protection
- Power regulator included
- Mounting tabs included
General Information
Name: SDC 1490AIY Narrow Right Angle Electric Bolt Lock, Failsafe, Dull Black
Category: Security Door Controls, Access Control, Locking Devices, Deadbolts
UPC Code: 712905106205
Country of Origin: United States.Country of origin is subject to change.
Specifications
ADI Part Number SZ-1490AIY Brand Name Security Door Controls Manufacturer Part Number 1490AIY Product Type Electric Bolt Lock
Country of Origin US
