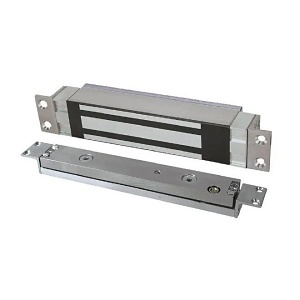

SDC 1561ITCDB Concelaed Hi/Shear Emlock, 1-5/8" Depth, Standard Mounting Armature Kit, Bond Sensor
1561ITCDB
|SZ-1561IDB
Shop All Security Door Controls
SDC 1561ITCDB Concelaed Hi/Shear Emlock, 1-5/8" Depth, Standard Mounting Armature Kit, Bond Sensor
1561ITCDB | SZ-1561IDB
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
When unauthorized egress is initiated by depressing the push pad of the S6000-101, an audible alarm will sound and an irreversible delay period of 15 seconds will begin. After the delay period has expired, the device unlocks, permitting egress until the device is reset. In a life safety emergency, the device will immediately unlock upon loss of power or when powered by a fire control supervised power supply.
Specifications
ADI Part Number SZ-1561IDB Brand Name Security Door Controls Manufacturer Part Number 1561ITCDB Product Name Concealed Electromagnetic Shear Locks Product Series 1560 Product Type Magnetic Lock
Material Aluminum
Input Current 350mA, 650mA Input Voltage 12V DC, 24V DC
Holding Force 2000 lb
Limited Warranty 5-Year
Environmental Certification UL Environmentally Friendly Yes
