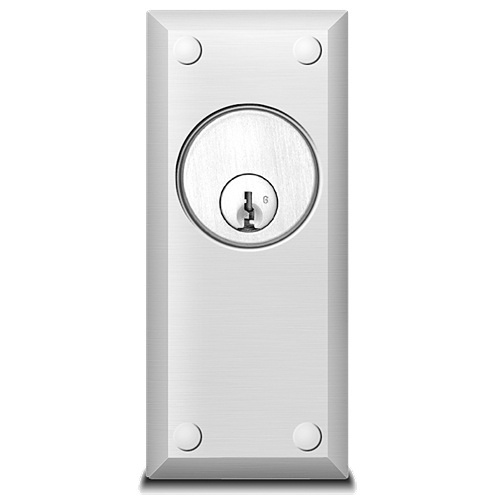

Image of SZ-805ALN
Shop all Security Door Controls

SDC 805ALN 800AL Series Narrow Vandal Resistant Key Switch, Alternate Action DPDT

805ALN|SZ-805ALN
Shop all Security Door Controls

SDC 805ALN 800AL Series Narrow Vandal Resistant Key Switch, Alternate Action DPDT

805ALN|SZ-805ALN
Key Features
  • 1/4'' Thick aluminum faceplates
  • Alternate action (AA) or momentary (MO)
  • SPDT or DPDT
Key Features
  • 1/4'' Thick aluminum faceplates
  • Alternate action (AA) or momentary (MO)
  • SPDT or DPDT

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 1/4'' Thick aluminum faceplates
  • Alternate action (AA) or momentary (MO)
  • SPDT or DPDT
Image of SZ-805ALN
Security Door Controls

SDC 805ALN 800AL Series Narrow Vandal Resistant Key Switch, Alternate Action DPDT

805ALN | SZ-805ALN

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

SDC key switch assemblies provide an economical method of authorized control for a variety of applications. A choice of several contact configurations ensure compatibility with virtually any system. Key switch assemblies are compatible with U.S. standard, 1” and 13/8” mortise key cylinders and interchangeable core cylinders*. Compatibility with a new or existing facility mechanical key system is maintained. SDC’s 800AL series vandal resistant switch assemblies come standard with 1/4” thick aluminum faceplates and heavy duty rated switches. Available in a narrrow faceplate size to mount directly to the door frame or single gang sizes to be box mounted.

Main Features

  • 1/4'' Thick aluminum faceplates
  • Alternate action (AA) or momentary (MO)
  • SPDT or DPDT
  • 22 gauge wire leads, 7”
  • Tamper resistant, recessed cylinder
  • Tamper resistant spanner screws
  • Large actuator for positive and consistent activation
  • 1” - 1 3/8” mortise cylinder compatible

General Information

Name: SDC 805ALN 800AL Series Narrow Vandal Resistant Key Switch, Alternate Action DPDT
Category: Security Door Controls, Access Control, Locking Devices, Key Switches
UPC Code: 712905171531
Country of Origin: United States. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
