Product Overview
Great Image Performance Powered by RealSight Engine. RealSight Engine solve the problem of motion blur in images caused by the rapid movement of people captured previously. This ensures that all moving figure details are captured, automatically making the image clearer without the need to adjust the camera shutter speed. AI Detection for Accurate Alarm. VIVOTEK Smart VCA offers precise object and attribute tracking, providing detailed video analytics for targeted monitoring and quick searches. Enhanced Security with TPM 2.0. The TPM 2.0 chip provides hardware encryption to protect confidential and cryptographic data, prevent unauthorized access, and also ensures system integrity for long-term security. Engineered for Endurance in Most Environments. IP66, IK10 and NEMA 4X for weather-resistant, vandal-proof and anti-corrosion, ensuring durability even in harsh outdoor conditions. Built to withstand extreme weather elements and protect against vandalism, providing reliable security in any environment. Build for Easy Cabling. Just simply pass the existing network cable through and plug it directly into the network port. Two-way audio and alarm I/O expansion are also available, interchangeable cable making replacement and installation quick and effortless. Complete Video Security with VIVOTEK Solution. Access and manage all devices and accounts through a single platform, providing accurate event monitoring and intuitive security system operation video investigation no matter where you are.
Main Features
- AI-powered Smart Motion Detection and Smart VCA
- RealSight Engine for unparalleled visibility
- Built-in IRs up to 40m
- IP66/IK10/NEMA 4X Protection
- Signed Firmware, Secure Boot, TPM 2.0
General Information

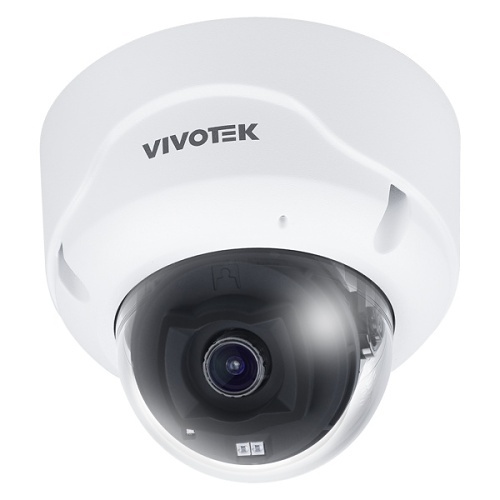

Name: VIVOTEK FD9399-EHV 8MP Outdoor Dome Camera, 4.2mm Fixed Lens
Category: VIVOTEK, Video Surveillance, IP Cameras, Dome Cameras
UPC Code:
Country of Origin: Taiwan. Country of origin is subject to change.
Specifications
ADI Part Number T6-FD9399 Brand Name VIVOTEK Manufacturer Part Number FD9399-EHV
Effective Camera Resolution 8MP Field of View Diagonal, Horizontal, Vertical Lens Type Fixed Maximum Aperture f/1.6 Maximum Frame Rate 30.0fps Night Vision Yes Night Vision Type Infrared (IR) Video Formats H.264 / AVC, H.265 / HEVC, MJPEG Wide Dynamic Range Yes
Camera Type Dome Camera Image Sensor Type CMOS Night Vision Distance 40.00m
Ingress Protection Rating IP66 NDAA Compliant Yes TAA Compliant Yes
Maximum Video Resolution 3840 x 2160
Operating Humidity 0.98
Longest Shutter Speed 1/5 Second Minimum Illumination 0.0150lux Shortest Shutter Speed 1/32000 Second
Focal Length 4.2mm Maximum Focal Length 4.20mm
ADI Part Number Alternative HX-OD2187G2 Model Number Alternative DS-2CD2187G2-LSU 2.8MM
Environmental Certification CE, FCC, UL Environmentally Friendly Yes Impact Protection Rating IK10 Indoor/Outdoor Outdoor Package Contents alignment sticker, L-shaped wrench, Quick installation guide, screw pack
