VIVOTEK AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch

Brand: VIVOTEK
ADI #:T6-FGT100D12 Model #: AW-FGT-100D-120  Name: VIVOTEK AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch
  • Effectively increases available bandwidth on your network
  • Quickly and easily set up a wired network with 10 networking ports
  • Power Supply power source for required power supply to ensure maximum efficiency

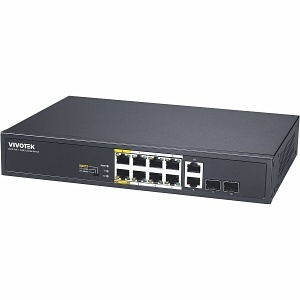

Image of T6-FGT100D12

Product Overview

The AW-FGT-100D-120 quipped with DIP switch provides EX mode, ST VLAN, and ST mode. Especially designed for IP Surveillance applications, the camera provides standard 802.3af/at PoE functions in ST mode, while EX mode transmits data & power on one single cable up to 250 meters via EX ports for long-reach PoE IP cameras. The Commercial series adds an extra 20% range of input voltage tolerance(280VAC 4hrs, 300VAC 1 min), lightning surge protection of AC power & PoE surge protection to prevent the damage caused by outside unstable AC power, lightning surge, and power spikes. These unique features reduce costs associated with the replacement of damaged units.

General Information

Name : VIVOTEK AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch , VIVOTEK
Category : Network Switches
UPC Code : 4710469352249

Specifications

General Information

ADI Part Number : T6-FGT100D12
Brand Name : VIVOTEK
Manufacturer : Vivotek, Inc
Manufacturer Part Number : AW-FGT-100D-120
Product Model : AW-FGT-100D-120
Product Name : AW-FGT-100D-120 Unmanaged 8xFE PoE + 2xGE Combo Switch
Product Type : Ethernet Switch
Weight (Approximate) (g) : 1540

Technical Information

Media Type Supported : Optical Fiber, Twisted Pair
Power Consumption : 120W

I/O Expansions

Expansion Slot Type : SFP (mini-GBIC)
Number of SFP Slots : 2
Number of Total Expansion Slots : 2
Shared SFP Slot : Yes

Interfaces/Ports

Modular : Yes
Network (RJ-45) : Yes
Port/Expansion Slot Details : 2 x Gigabit Ethernet TP/SFP Combo, 8 x Fast Ethernet PoE
Total Number of Network Ports : 10

Management & Protocols

Manageable : No

Media & Performance

Network Technology : 10/100/1000Base-T, 10/100Base-T, 1000Base-X

Network & Communication

Ethernet Technology : 10 Gigabit Ethernet
Layer Supported : 2
Networking Standards : IEEE 802.3af, IEEE 802.3at

Physical Characteristics

Height : 1.7"
Height (mm) : 44.000
Weight (Approximate) : 3.40 lb
Width : 7.1"
Width (mm) : 181.000

Power Description

Input Voltage : 120V AC, 230V AC
PoE (RJ-45) Port : Yes
PoE Budget : 115W
PoE Budget (W) : 115
Power Consumption (W) : 120.000
Power Source : Power Supply

Product Information

Length : 10.6"
Length (mm) : 270.000
