Image of TC-4POSTRAWM
Shop all Eaton Tripp Lite

Eaton Tripp Lite 4POSTRAILKITWM 4-Post Rack-Mount Shelf Kit

4POSTRAILKITWM|TC-4POSTRAWM
Shop all Eaton Tripp Lite

Eaton Tripp Lite 4POSTRAILKITWM 4-Post Rack-Mount Shelf Kit

4POSTRAILKITWM|TC-4POSTRAWM
Key Features
What's Included
  • 1U rack rail kit supports up to 150 lbs
  • Compatible with 19 in. wall-mount racks
  • Expandable rails for 17.5 in. chassis
Key Features
What's Included
  • 1U rack rail kit supports up to 150 lbs
  • Compatible with 19 in. wall-mount racks
  • Expandable rails for 17.5 in. chassis

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
What's Included
  • 1U rack rail kit supports up to 150 lbs
  • Compatible with 19 in. wall-mount racks
  • Expandable rails for 17.5 in. chassis
Eaton Tripp Lite

Eaton Tripp Lite 4POSTRAILKITWM 4-Post Rack-Mount Shelf Kit

4POSTRAILKITWM | TC-4POSTRAWM

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

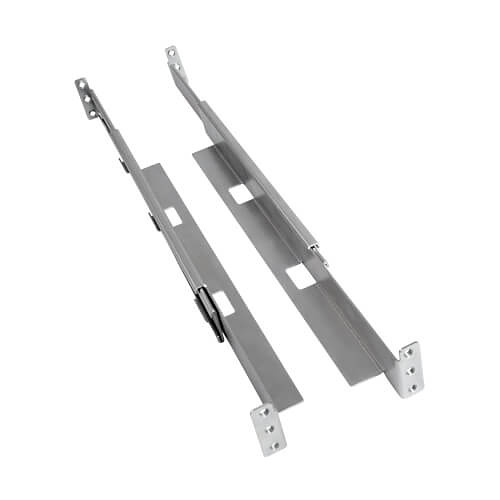

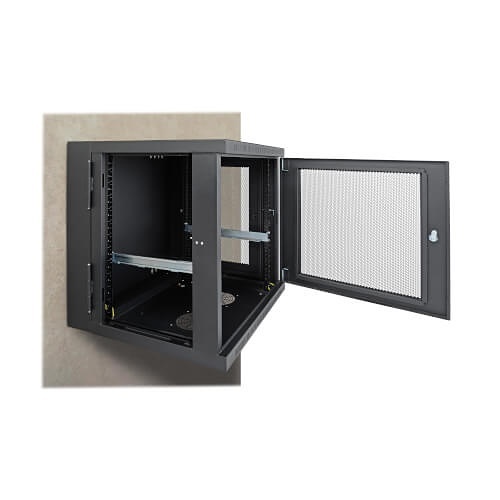

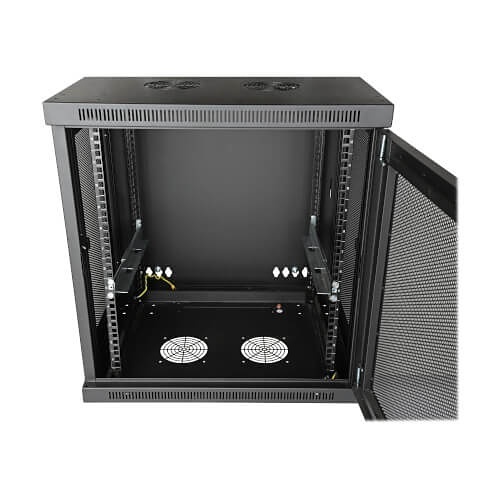

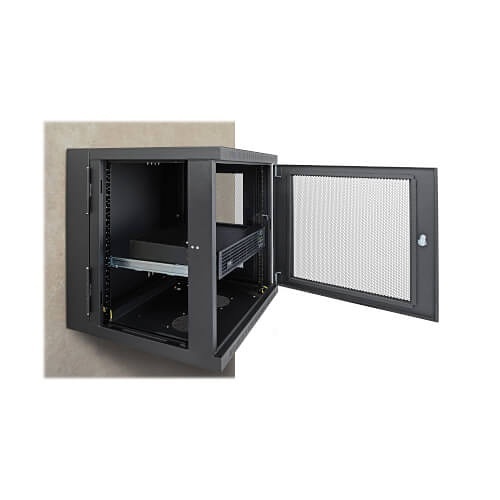

The 4POSTRAILKITWM wall-mount rack shelf kit provides extra support for heavy UPS systems, PDUs or other rack-mount components that weigh 150 lbs (68 kgs) or less. It includes two adjustable mounting rails that attach to the mounting rails of your EIA-standard 19" wall-mount enclosure. Constructed using cold-rolled steel with a durable powder-coated finish, this heavy-duty rack rail kit comes with mounting hardware compatible with square-hole racks. The rails offer front-to-rear support for equipment with 17.5"-wide rectangular chassis. They also adjust to any setting between 14.5 and 23.5 inches and leave the rack's front and rear mounting holes free to attach equipment. Setup is hassle-free and saves money and time on installation. Threaded-hole rack installation is also supported with user-supplied mounting hardware.

Main Features

  • 1U rack rail kit supports up to 150 lbs
  • Compatible with 19 in. wall-mount racks
  • Expandable rails for 17.5 in. chassis
  • Adjustable rails from 14.5 to 23.5 in.
  • Cold-rolled steel with powder-coated finish
  • Includes mounting hardware for easy installation

General Information

Name: Eaton Tripp Lite 4POSTRAILKITWM 4-Post Rack-Mount Shelf Kit
Category: Data Comm & Networking, Racks & Enclosures, Rack Accessories
UPC Code: 037332206374
Country of Origin: China. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
