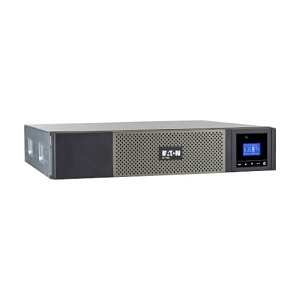

Eaton Tripp Lite 5P1500RC 1440VA 1100W 120V Line-Interactive UPS, 5-15P, 10x 5-15R Outlets, 16" Depth, True Sine Wave, Cybersecure Network Card Option, 2U
5P1500RC
|TC-5P1500RC
Shop All Eaton Tripp Lite
Eaton Tripp Lite 5P1500RC 1440VA 1100W 120V Line-Interactive UPS, 5-15P, 10x 5-15R Outlets, 16" Depth, True Sine Wave, Cybersecure Network Card Option, 2U
5P1500RC | TC-5P1500RC
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
1.44kVA/1.1kW/120V Battery Backup for Network Closets and Small Data CentersThis 5P rack-mount line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1500RC protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.Reliable Battery Backup Keeps You Operational Through Power OutagesValve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.Optional Gigabit Network Interface Offers 24/7 Remote AccessThe NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don’t have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.NEMA 5-15R Outlets Protect Your Connected ComponentsTen managed 5-15R outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Six outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.LCD Interface Keeps You Informed at a GlanceThe five-button graphical LCD provides useful information about the UPS itself, load status,events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.Advanced Communications Ports Allow for Automatic Saves and ShutdownsRS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components. The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment.Flexible Installation OptionsYou can mount the 5P1500RC in 2U of space in an EIA-standard 19-inch 2-post or 4-post rack using the included hardware. The compact UPS system’s short 16-inch depth allows extra space in the rear for cabling and enhanced airflow through the rack. You can also use the included hardware for wall mounting. The six-foot power cord with NEMA 5-15P plug connects to a compatible AC outlet.
Specifications
ADI Part Number TC-5P1500RC Brand Name Eaton Tripp Lite Manufacturer Part Number 5P1500RC
Output Voltage 120V Receptacle Detail 10 x 5-15R, 5-15P Receptacle Type 5-15P, 5-15R
Battery Chemistry Sealed Lead Acid (SLA)
Depth 16" Form Factor Compact Height 3.4" Rack Height 2U Width 17.4"
Input Frequency 50-60 Hz Input Voltage 120V Waveform Type Sine Wave
Limited Warranty 3-Year
Country of Origin PH Environmental Certification CE, cUL, UL Environmentally Friendly Yes Package Contents 5P rackmount compact UPS, Multi-purpose rail kit, Quick start guide, RS-232 serial cable, USB cable
