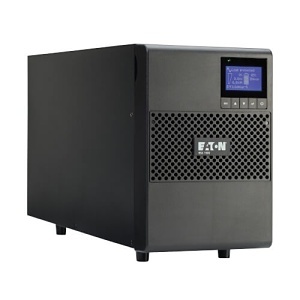

Eaton Tripp Lite 9SX1500 9SX Online Double-Conversion UPS, Cybersecure Network Card Option, Extended Run, Tower, 1500VA 1350W 120V
9SX1500
|TC-9SX1500
Shop All Eaton Tripp Lite
Eaton Tripp Lite 9SX1500 9SX Online Double-Conversion UPS, Cybersecure Network Card Option, Extended Run, Tower, 1500VA 1350W 120V
9SX1500 | TC-9SX1500
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The Eaton Tripp Lite 9SX1500 is a tower on-line double-conversion UPS delivering genuine sine wave AC output ideal for servers and network equipment in data centers or computer rooms. It features a 5-15P input with six 5-15R outlets for versatile connectivity. Enhance backup time by adding up to four 9SXEBM48 extended battery modules. This UPS offers robust network-grade protection against power outages and voltage fluctuations, providing 17 minutes of runtime at half load and 6 minutes at full load. Manage the device remotely via RS-232/USB interfaces and an expansion slot. Secure your critical equipment with this reliable UPS, order now for uninterrupted power supply.
Main Features
- 1500VA 1350W double-conversion UPS
- 6 NEMA 5-15R Outlets with pure sine wave output
- Cybersecure network card option available
- Extended runtime with external battery modules
- Hot-swappable internal battery modules
- ABM technology extends battery life by 50%
- Remote management via optional network card
- Meets UL 2900-1 and IEC 62443-4-2 standards
- LCD interface for system status and alerts
- Supports tower installation on flat surfaces
General Information
Name: Eaton Tripp Lite 9SX1500 9SX Online Double-Conversion UPS, Cybersecure Network Card Option, Extended Run, Tower, 1500VA 1350W 120V
Category: Batteries & Power Supplies, Power Management, UPS
UPC Code: 743172091246
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-9SX1500 Brand Name Eaton Tripp Lite Manufacturer Tripp Lite Manufacturer Part Number 9SX1500 Packaged Quantity 1 Product Line 9PX Product Model 9SX1500 Product Name Eaton 9SX online, extended runtime UPS, 1500 VA, 1350 W, 5-15P input, Outputs (6) 5-15R, 9.9"Hx6.3"Wx17.1"D, 41.9 lb., network card optional Product Type UPS Sector Data Comm & Networking
Output Voltage 120V
Maximum Operating Temperature 104°F
Depth 17.1" Form Factor Tower Height 9.9" Weight 41.9lb Width 6.3"
Input Voltage 120V Output Frequency 50Hz, 60Hz
Limited Warranty 3-Year
Environmentally Friendly Yes Package Contents - 9SX1500 Eaton 9SX Double-Conversion UPS
- USB cable
- RS-232 cable
- Quick start guide
