Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display
B042-008
|TC-B042008
Shop All Eaton Tripp Lite
Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display
B042-008 | TC-B042008
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
The NetController 8-Port 1U rack-mount KVM Switch is an affordable, highly flexible enterprise-class KVM Switch, which allows the user to connect either USB or PS/2 keyboards and mice. In addition, P780-Series USB/PS2 combo KVM cable kits allow you to connect either USB or PS/2 computers, without the need to purchase separate cables or adapters. Control up to eight directly connected computers, or expand the number of connected computers to up to 248 by daisy-chaining up to 15 additional B042-Series KVM switches. Switch between connected computers via the On-Screen Display (OSD), push buttons or keyboard hotkey commands. Other features include: password protection, auto-scanning, auto-logout, firmware upgrade and video support up to 2048x1536 (QXGA). Mounts easily in a standard 19" rack/cabinet and includes all necessary mounting hardware. Compatible with all major operating systems. Constructed of heavy-duty steel housing.
Main Features
- 8-Port 1U Rack-Mount KVM Switch
- Control 8 computers with one VGA monitor
- USB/PS2 combo Cable kits included
- Daisy-chain up to 248 computers
- 19" Rackmount size with hardware
- On-Screen Display for easy operation
- Supports video Resolution up to 2048x1536
- Password protection and auto-logout
- Firmware upgradeable
- Hot-swappable USB connections
General Information
Name: Eaton Tripp Lite B042-008 8-Port 1U Rack-Mount USB/PS2 KVM Switch with On-Screen Display
Category: Data Comm & Networking, Hubs, Routers & Switches, KVM Switches & Extenders
UPC Code: 37332141392
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-B042008 Brand Name Eaton Tripp Lite Country of Origin CN Manufacturer Tripp Lite by Eaton Manufacturer Part Number B042-008 Packaged Quantity 1 Product Model B042-008 Product Name KVM Switch Product Type KVM Switchbox
Number of Computers Supported 8 Number of Users 1
TAA Compliant No
Depth 6.50" Form Factor Rack Mount Height 1.80" Rack Height 1U Width 16.10"
Mount Type Rack Mount
Graphics Modes QXGA
Limited Warranty 3-Year

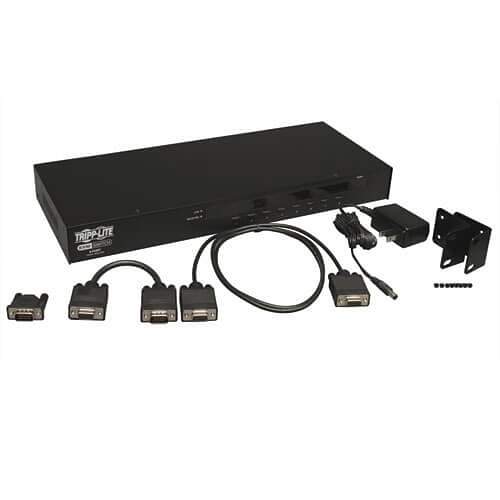

Environmental Certification RoHS Environmentally Friendly Yes Features PS/2; VGA/SVGA Package Contents - B042-008 NetController 8-port 1U rack-mount KVM switch
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60 Hz, 0.5A / Output: 9V 1A)
- Rack-mount hardware
- 8 in. daisy-chain cable (for longer dais
