Image of TC-B06403202
Shop all Eaton Tripp Lite

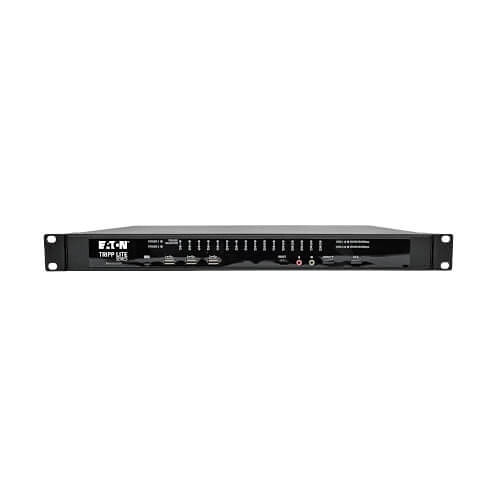

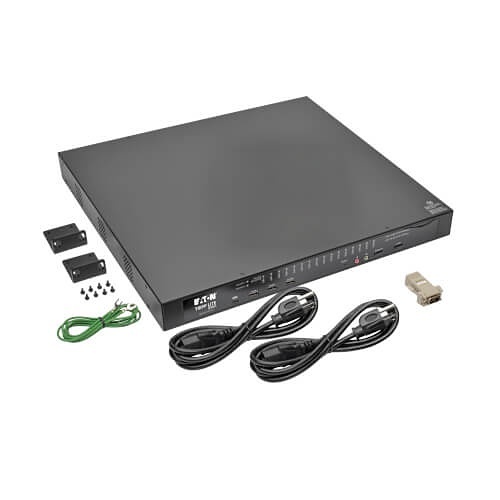

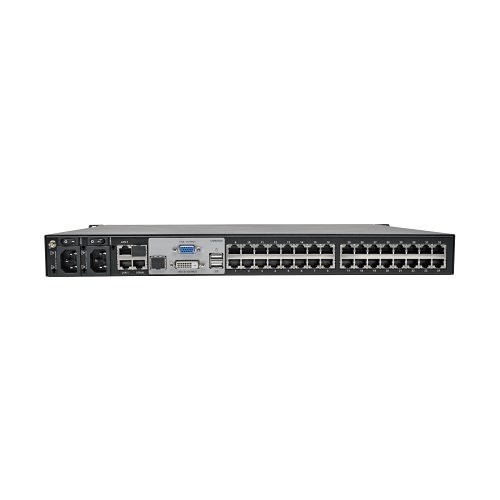

Eaton Tripp Lite B064-032-02-IPG NetDirector 32-Port CAT5 KVM over IP Switch, Virtual Media, 2 Remote + 1 Local User, 1U Rack-Mount

B064-032-02-IPG|TC-B06403202
Shop all Eaton Tripp Lite

Eaton Tripp Lite B064-032-02-IPG NetDirector 32-Port CAT5 KVM over IP Switch, Virtual Media, 2 Remote + 1 Local User, 1U Rack-Mount

B064-032-02-IPG|TC-B06403202
Key Features
  • 32-Port CAT5 KVM over IP Switch
  • Supports 3 users: 1 local, 2 remote
  • DVI and VGA console ports included
Key Features
  • 32-Port CAT5 KVM over IP Switch
  • Supports 3 users: 1 local, 2 remote
  • DVI and VGA console ports included

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 32-Port CAT5 KVM over IP Switch
  • Supports 3 users: 1 local, 2 remote
  • DVI and VGA console ports included
Eaton Tripp Lite

Eaton Tripp Lite B064-032-02-IPG NetDirector 32-Port CAT5 KVM over IP Switch, Virtual Media, 2 Remote + 1 Local User, 1U Rack-Mount

B064-032-02-IPG | TC-B06403202

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

This 32-Port NetDirector CAT5 IP KVM Switch is the optimal solution for remotely controlling multiple computers (combination of PS/2, USB and Serial) by up to three (one Local and two Remote) independent, simultaneous users. Both DVI and VGA console ports are included for connection of either a DVI or VGA monitor. High video resolution: up to 1600x1200 at 60 Hz with 32-Bit color depth for the local console and up to 1600x1200 at 60 Hz with 24-Bit color depth for remote sessions up to 164' (50m). A full-screen graphical OSD with multi-level authentication (Super Administrator, Administrator and User) allows you to quickly and efficiently manage your installation, and can be displayed in English, German, Russian, Japanese, traditional Chinese and simplified Chinese. Critical events on the installation can be tracked via email notification, SNMP traps, the Windows-based log server or Syslog server. Accessing the connected computers is a breeze. View multiple computers at the same time using panel array mode, automatically sync USB mice and access the on-screen keyboard feature in numerous language formats. Virtual Media allows computers connected using a B055-001-USB-V2 Server Interface Unit to access DVD/CD drives, flash drives and other storage media as if they were directly connected to the computer. In addition, three USB ports are located on the front panel of the unit for use with Virtual Media or an external keyboard and mouse. Also located on the front of the KVM is a USB Mini-B port that allows for direct connection of a laptop for easy console operation of the switch. Other features include FIPS 140-2 level 1 security standards support, dual power supplies that allow the unit to continue running in the event one power supply stops receiving power, temperature sensors that control the speed of the unit's cooling fans, remote authentication support via RADIUS, LDAP, LDAPS and Active Directory, dial-in modem access and non-browser access using Windows and Java applications. Constructed of heavy-duty steel housing.

Main Features

  • 32-Port CAT5 KVM over IP Switch
  • Supports 3 users: 1 local, 2 remote
  • DVI and VGA console ports included
  • High video resolution: 1920 x 1200 @ 60Hz
  • Full-screen graphical OSD with multi-level authentication
  • Email, SNMP, and Syslog event tracking
  • Panel array mode for viewing multiple computers
  • Virtual Media support for USB devices
  • FIPS 140-2 level 1 security standards
  • Dual power supplies for redundancy

General Information

Name: Eaton Tripp Lite B064-032-02-IPG NetDirector 32-Port CAT5 KVM over IP Switch, Virtual Media, 2 Remote + 1 Local User, 1U Rack-Mount
Category: Data Comm & Networking, KVM Switches & Extenders
UPC Code: 037332151537
Country of Origin: Taiwan. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
