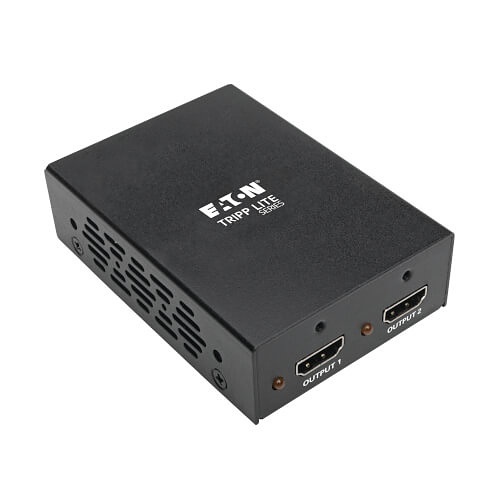

Tripp Lite B118-002-UHD-2 2-Port HDMI Splitter, HDCP 2.2, 4K at 60 Hz, HDR, TAA
Brand: Tripp Lite by Eaton
ADI #:TC-B118002UH
Model #: B118-002-UHD-2
Name: Tripp Lite B118-002-UHD-2 2-Port HDMI Splitter, HDCP 2.2, 4K at 60 Hz, HDR, TAA
- Transmits UHD video resolutions up to 4K x 2K @ 60 Hz
- Distributes A/V up to 15 ft. when used with 28 AWG HDMI cable
- Supports DTS-HD, Dolby® TrueHD and Dolby Digital Plus™
Product Overview
Two-Port HDMI splitter transmits Ultra High Definition (UHD) 4K x 2K audio/video (A/V) from an HDMI source to two HDMI displays at the same time. Plug-and-play technology makes installation quick and simple - with no software or drivers to install. Using standard 28 AWG HDMI cabling, this splitter can transmit full 3D and a 4K x 2K (3840 x 2160) signal up to 15'. It supports a wide range of audio formats, including DTS-HD, Dolby TrueHD, Dolby Digital Plus, and LPCM 7.1-channel surround sound as well as 36-bit Deep Color (12 bits per channel). Splitter also supports HDMI 2.0 and HDCP 2.2 to ensure its compatibility with the latest audio/video hardware.
General Information
Name : Tripp Lite B118-002-UHD-2 2-Port HDMI Splitter, HDCP 2.2, 4K at 60 Hz, HDR, TAA , Tripp Lite by EatonCategory : Pro HDMI Splitters
UPC Code : 037332200648
Country of Origin : Taiwan. Country of origin is subject to change.
Specifications
General Information
ADI Part Number : TC-B118002UH
Brand Name : Tripp Lite
Manufacturer : Tripp Lite by Eaton
Manufacturer Part Number : B118-002-UHD-2
Packaged Quantity : 1
Product Model : B118-002-UHD-2
Product Name : B118-002-UHD-2 2-Port 4K 3D HDMI Splitter
Product Type : Signal Splitter
Technical Information
Material : Metal
Maximum Operating Distance : 22.97 ft
Display & Graphics
Maximum Video Resolution : 3840 × 2160
Interfaces/Ports
HDMI In : Yes
HDMI Out : Yes
Number of HDMI Inputs : 1
Number of HDMI Outputs : 2
Media & Performance
Maximum Operating Distance (mm) : 7000
Physical Characteristics
Product Material : Metal
Power Description
Input Voltage : 120 V AC, 230 V AC, 5 V DC
Input Voltage (V AC) : 120, 230
Input Voltage (V DC) : 5
Warranty
Additional Warranty Information : <p>3 year limited warranty</p>
Limited Warranty : 3 Year
Miscellaneous
Country of Origin : Taiwan
Environmental Certification : RoHS
TAA Compliant : Yes
