Eaton Tripp Lite B118-008E-UHD-2 8-Port HDMI Splitter, 4K at 60Hz, HDCP 2.2, EDID Management
B118-008E-UHD-2
|TC-B118008EU
Shop All Eaton Tripp Lite
Eaton Tripp Lite B118-008E-UHD-2 8-Port HDMI Splitter, 4K at 60Hz, HDCP 2.2, EDID Management
B118-008E-UHD-2 | TC-B118008EU
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
Recommended for home theaters or short-distance digital signage applications in classrooms, showrooms, offices, churches, restaurants, bars, hotels and trade shows, this Ultra High Definition (UHD) HDMI splitter is quick and easy to install. It connects to an HDMI source device, such as a computer or Blu-ray player, and transmits a true 4K audio/video signal to eight HDMI monitors, projectors or televisions simultaneously. You can cascade up to three levels of splitters, which expands the total number of connected displays to 512. Note: The B118-008E-UHD-2 sends the same image to all connected displays. If you would like to extend an image over multiple displays, you will need an MST hub, such as the B156-002-HD-V2. Using standard 28 AWG HDMI cable, the B118-008E-UHD-2 distributes a 4K audio/video signal (at 60 Hz) up to 15 feet (4.6 meters). Be sure the HDMI cables connecting the splitter to the source and displays are no longer than 15'. For best performance, we recommend using P569-Series HDMI cables.
Specifications
ADI Part Number TC-B118008EU Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B118-008E-UHD-2 Product Model B118-008E-UHD-2 Product Name 8-Port HDMI Splitter - HDMI 2.0, 4K x 2K@60 Hz, HDCP 2.2, EDID Management Product Type HDMI Splitter
Application/Usage Residential
Number of HDMI Inputs 1 Number of HDMI Outputs 1
Color Black Depth 10.4" Height 0.9" Weight 1lb Width 3.2"
Input Voltage 120V AC, 12V DC, 230V AC
Limited Warranty 3-Year

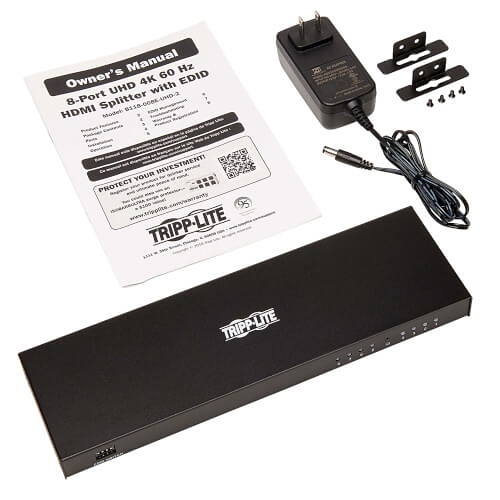

Country of Origin CN Environmentally Friendly Yes Package Contents - B118-008E-UHD-2 8-Port HDMI Splitter
- External power supply with 5 ft. cord and NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 0.6A; Output: 12V 2A)
- Mounting hardware
- Owner's manual
