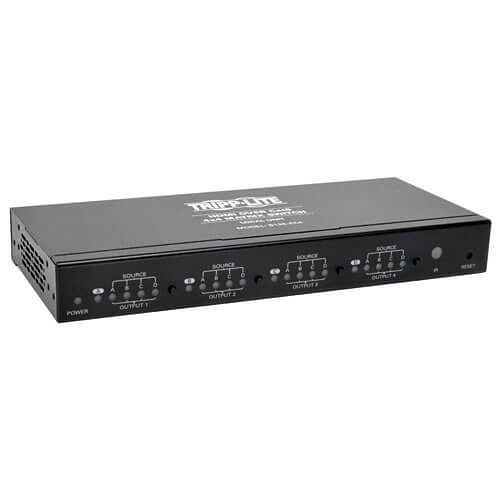

Eaton Tripp Lite B126-4X4 4x4 HDMI Matrix Splitter Switch Over CAT5/CAT6, Box Style Transmitter

B126-4X4|TC-B1264X4
Shop all Eaton Tripp Lite

Eaton Tripp Lite B126-4X4 4x4 HDMI Matrix Splitter Switch Over CAT5/CAT6, Box Style Transmitter

B126-4X4|TC-B1264X4
Key Features
  • Extends 1080i signals up to 175' and 1080p signals up to 125 ft
  • Supports HD Resolutions up to 1080p and stereo audio
  • Plug-and-play setup with no software required
Key Features
  • Extends 1080i signals up to 175' and 1080p signals up to 125 ft
  • Supports HD Resolutions up to 1080p and stereo audio
  • Plug-and-play setup with no software required

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • Extends 1080i signals up to 175' and 1080p signals up to 125 ft
  • Supports HD Resolutions up to 1080p and stereo audio
  • Plug-and-play setup with no software required
Eaton Tripp Lite

Eaton Tripp Lite B126-4X4 4x4 HDMI Matrix Splitter Switch Over CAT5/CAT6, Box Style Transmitter

B126-4X4 | TC-B1264X4

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

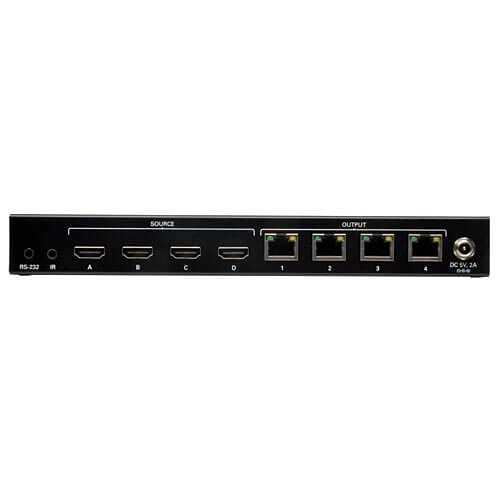

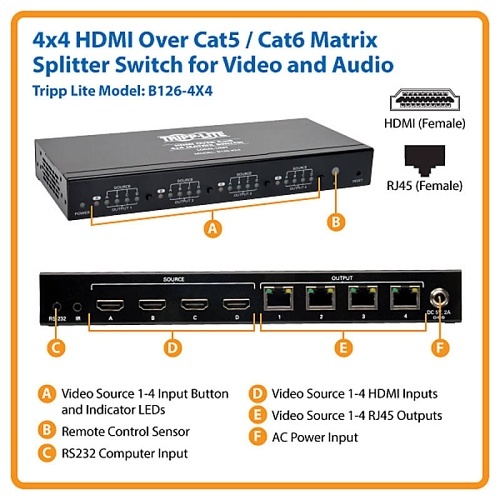

The B126-4X4 4-port HDMI over CAT5/CAT6 Matrix Splitter Switch works with compatible remote receivers to share one or more HDMI sources between multiple projectors, monitors or televisions. It's ideal for digital signs, trade shows, presentations, retail and other applications where the video sources are located farther than conventional cables allow or that require multiple displays connected to one source. It uses HDMI cable to connect to the sources and Cat5e/6 cable to transmit to the remote monitors (for best results, use 24AWG solid-wire CAT5e/6 cable, such as the N202-Series). Any video source can be routed to any monitor, or you can send the same source to multiple monitors. Switch between inputs via push buttons, RS-232 serial or the included remote control.When used with a B126-1A0 or B126-1A0-WP-1 active remote receiver, the switch can extend a 1080i (60 Hz) signal up to 175' (53.3m) or a 1080p signal (60 Hz) up to 125' (38.1m). With a B126-1P0 or B126-1P0-WP-1 passive remote receiver, it can extend a 1080i (60 Hz) signal up to 75' (22.9m) and a 1080p (60 Hz) signal up to 50' (15.2m) Add up to three B126-110 remote repeaters to each channel to fully extend the signal range or add more displays. In addition to crystal-clear video, the B126-4X4 delivers full, rich stereo. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware.

Main Features

  • Extends 1080i signals up to 175' and 1080p signals up to 125 ft
  • Supports HD Resolutions up to 1080p and stereo audio
  • Plug-and-play setup with no software required
  • Compatible with all operating systems and HDMI sources

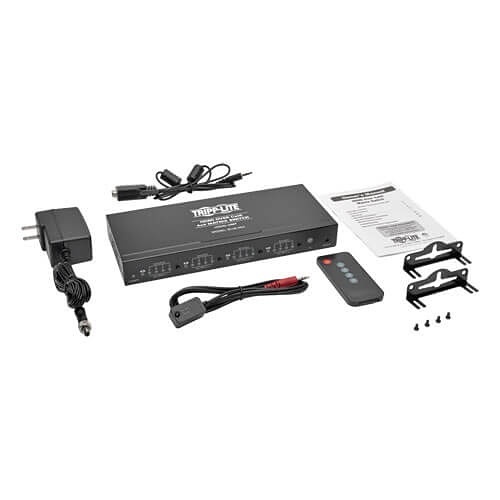

  • Includes IR Extension Cable for remote control
  • LED Indicators for Power and HDMI signal status
  • Mounting hardware for wall, rack, or pole installation
  • TAA-Compliant for GSA Schedule purchases
  • Delivers full, rich stereo sound
  • Works with Tripp Lite’s B126-Series receivers

General Information

Name: Eaton Tripp Lite B126-4X4 4x4 HDMI Matrix Splitter Switch Over CAT5/CAT6, Box Style Transmitter
Category: Residential AV, Pro AV, Residential Video Signal Distribution, Commercial Video Signal Distribution, HDMI Splitters, Pro HDMI Splitters
UPC Code: 037332180193
Country of Origin: Taiwan. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
