Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant
B127-200-H|TC-B127200H
Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant
B127-200-H|TC-B127200H
Key Features
What's Included
- Extends 4K HDMI signals up to 125' with Cat6 cable
- Supports Ultra HD 4K video at 60 Hz with 4:4:4 color
- Built-in PoC technology eliminates need for Power bricks
Key Features
What's Included
- Extends 4K HDMI signals up to 125' with Cat6 cable
- Supports Ultra HD 4K video at 60 Hz with 4:4:4 color
- Built-in PoC technology eliminates need for Power bricks
Sign In for Dealer Pricing
Become an ADI CustomerKey Features
What's Included
- Extends 4K HDMI signals up to 125' with Cat6 cable
- Supports Ultra HD 4K video at 60 Hz with 4:4:4 color
- Built-in PoC technology eliminates need for Power bricks
Eaton Tripp Lite
Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant
B127-200-H | TC-B127200H
Please sign in to view pricing and availability and to add to cart.
Accessories
Battery Packs
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
WT-OVRC1500U|WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
WT-WB800IP12|WT-WB800IP12
Sign In for Dealer Pricing
Overview
Specifications
Documents
Product Overview
Works with Tripp Lite B127-Series transmitters to extend 4K audio/video via Cat6 cable to 2 HDMI displays up to 125 ft. away.
Features
2-Port Receiver Extends HDMI Signals for 4K Digital Signage or Video Presentations

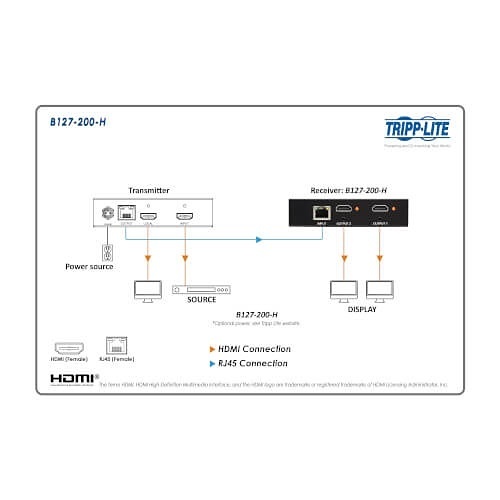

This box-style active remote receiver works in tandem with Tripp Lite's B127-002-H or B127-004-H transmitter to extend 4K video (at 60 Hz) and 7.1 audio from an HDMI source to two HDMI displays up to 125 feet using Cat6 cabling. It can also extend a 4K HDMI signal (at 30 Hz) up to 150 feet and a 1080p HDMI signal (at 60 Hz) up to 200 feet.
An Ideal Setup for Settings Where Conventional HDMI Cables Can't Reach
The B127-200-H is recommended for home theaters and video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks

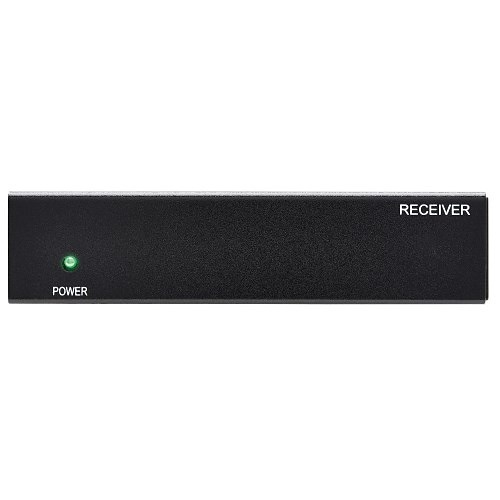

Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.
Supports Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-200-H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. The receiver is compatible with HDMI 2.0 standards for carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. The B127-200-H also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Plug-and-Play Operation for Quick Setup and Immediate Use
The receiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to the display with a user-supplied highspeed HDMI cable (such as Tripp Lite's P568- or P569-Series) and to the transmitter with Cat6 Ethernet cable (such as Tripp Lite N202-Series cable).
TAA-Compliant for GSA Schedule Purchases
The B127-200-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Features
2-Port Receiver Extends HDMI Signals for 4K Digital Signage or Video Presentations
This box-style active remote receiver works in tandem with Tripp Lite's B127-002-H or B127-004-H transmitter to extend 4K video (at 60 Hz) and 7.1 audio from an HDMI source to two HDMI displays up to 125 feet using Cat6 cabling. It can also extend a 4K HDMI signal (at 30 Hz) up to 150 feet and a 1080p HDMI signal (at 60 Hz) up to 200 feet.
An Ideal Setup for Settings Where Conventional HDMI Cables Can't Reach
The B127-200-H is recommended for home theaters and video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings and other digital signage applications where the source and display are farther apart than conventional A/V cables allow.
Built-In PoC Technology Provides Power to Avoid Bulky External Power Bricks
Built-in Power over Cable (PoC) technology powers the low-profile receiver over Cat6 cable. Green and orange LEDs will light up to indicate the unit is receiving power and a signal is being received. PoC lets you avoid the hassle of a bulky power brick and gives you the freedom to place the receiver away from an AC outlet.
Supports Crystal-Clear 4K HDMI Video with Multi-Channel Audio and 4:4:4 Color
The B127-200-H supports Ultra HD video resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with full, rich uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. Built-in equalization automatically fine-tunes the image quality at the remote displays with no time-consuming manual fiddling needed. The receiver is compatible with HDMI 2.0 standards for carrying HDR signals, which provide a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks. HDCP 2.2 compliance allows you to stream iTunes and Netflix content with no complications. The B127-200-H also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.
Plug-and-Play Operation for Quick Setup and Immediate Use
The receiver works right out of the box with no software required. Mounting hardware is included for installing it on a wall, pole or 19-inch rack. Connect the receiver to the display with a user-supplied highspeed HDMI cable (such as Tripp Lite's P568- or P569-Series) and to the transmitter with Cat6 Ethernet cable (such as Tripp Lite N202-Series cable).
TAA-Compliant for GSA Schedule Purchases
The B127-200-H is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Main Features
- Extends 4K HDMI signals up to 125' with Cat6 cable
- Supports Ultra HD 4K video at 60 Hz with 4:4:4 color
- Built-in PoC technology eliminates need for Power bricks
- Compatible with DTS-HD, Dolby TrueHD, and 7.1 audio
- Plug-and-play setup with no software required
- Includes mounting hardware for versatile installation
- TAA-Compliant for federal procurement contracts
General Information
Name: Eaton Tripp Lite B127-200-H 4K 2-Port HDMI Over CAT6 Active Remote Receiver for Video / Audio, 60 Hz, HDR, PoC, 125', TAA Compliant
Category: Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
-
ADI Part Number TC-B127200H Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B127-200-H Product Model B127-200-H Product Name B127-200-H 2-Port HDMI over Cat6 Active Remote Receiver Product Type Video Extender Receiver
-
Cable Type Category 6 Connectivity Technology Wired Maximum Operating Distance 125' Media Type Supported Twisted Pair Number of Output Devices Supported 2
-
TAA Compliant Yes
-
Maximum Video Resolution 3840 x 2160
-
Network (RJ-45) Yes Number of HDMI Outputs 2 Number of Network (RJ-45) Ports 1
-
Application/Usage Commercial, Residential Color Green, Orange Depth 2.46" Height 1.06" Width 4.53"
-
Graphics Modes 4K
-
Limited Warranty 1-Year
-
Country of Origin TW Package Contents - B127-200-H 2-Port HDMI over Cat6 Active Remote Receiver
- Mounting hardware
- Owner’s manual
