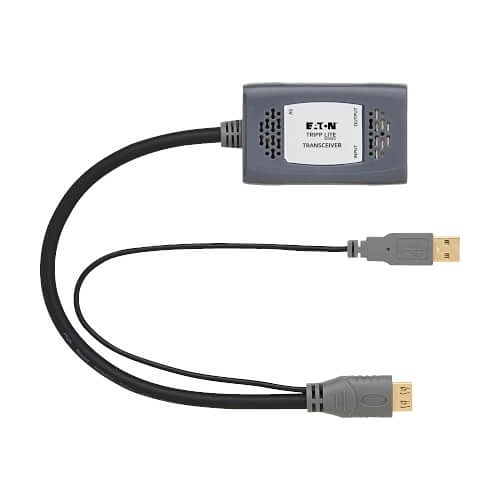

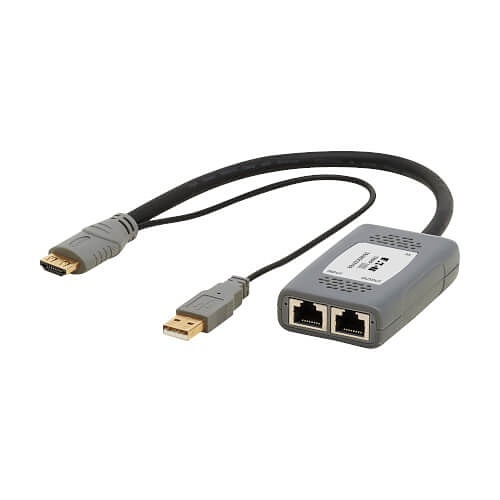

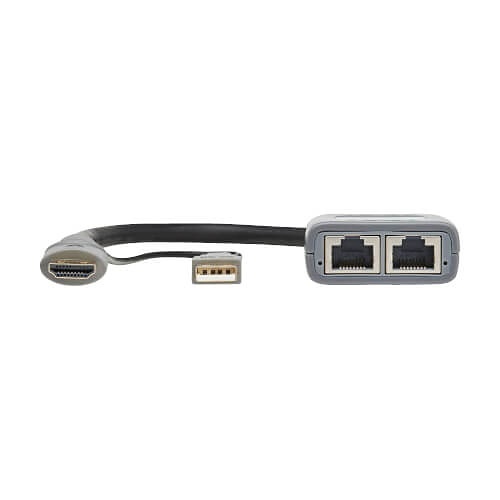

Eaton Tripp Lite B127U-110-PH HDMI over CAT6 Pigtail Receiver / Repeater 4K

B127U-110-PH|TC-B127U10P

Eaton Tripp Lite B127U-110-PH HDMI over CAT6 Pigtail Receiver / Repeater 4K

B127U-110-PH|TC-B127U10P
Key Features
What's Included
  • Extends 4K HDMI signals up to 230' via Cat6
  • Supports Ultra HD 4K at 60 Hz with HDR
  • Compatible with DTS-HD, Dolby TrueHD audio
Key Features
What's Included
  • Extends 4K HDMI signals up to 230' via Cat6
  • Supports Ultra HD 4K at 60 Hz with HDR
  • Compatible with DTS-HD, Dolby TrueHD audio

Sign In for Dealer Pricing

Become an ADI Customer
HID
Key Features
What's Included
  • Extends 4K HDMI signals up to 230' via Cat6
  • Supports Ultra HD 4K at 60 Hz with HDR
  • Compatible with DTS-HD, Dolby TrueHD audio
Eaton Tripp Lite

Eaton Tripp Lite B127U-110-PH HDMI over CAT6 Pigtail Receiver / Repeater 4K

B127U-110-PH | TC-B127U10P

Please sign in to view pricing and availability and to add to cart.

Accessories

HDMI Cables
Image of 0E-HDMIP50
ADI # 0E-HDMIP50
MODEL # 0E-HDMIP50
Sign In for Dealer Pricing
Battery Packs
Image of WT-OVRC1500U
ADI # WT-OVRC1500U
MODEL # WT-OVRC1500U
Sign In for Dealer Pricing
Power Conditioners
Image of WT-WB800IP12
ADI # WT-WB800IP12
MODEL # WT-WB800IP12
Sign In for Dealer Pricing
Pro HDMI Cables
Image of OG-BX8K1
ADI # OG-BX8K1
MODEL # OG-BX8K1
Sign In for Dealer Pricing
Rack Cabinets & Frames
Image of TO-BSLIDE35U
ADI # TO-BSLIDE35U
MODEL # TO-BSLIDE35U
Sign In for Dealer Pricing

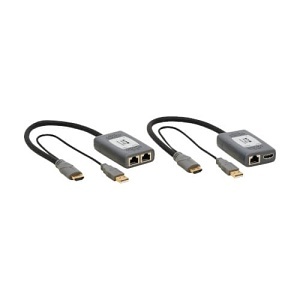

Pro HDMI Splitters
Image of TC-B127U11P
ADI # TC-B127U11P
MODEL # B127U-111-PHPH
Sign In for Dealer Pricing
Overview
Specifications
Documents

Product Overview

Features | DisplayPort Extender Receiver Recommended for Digital Signage in Schools and Businesses

This 4K receiver is recommended for video presentations in conference rooms, schools, trade shows, meeting facilities, houses of worship, retail settings, hotels and other digital signage applications where the source and display are farther apart than conventional A/V cables allow. When connected to a B127USeries transmitter, the B127U-110-PH helps extend 4K signals from an HDMI or DisplayPort source to an HDMI monitor up to 230 feet (70.1 meters) away with zero latency via user-supplied Cat6 cabling. The one-foot pigtail design makes the receiver easy to install, especially in a tight space.

Transmits 4K Video with Multi-Channel Audio, HDR and 4:4:4 Color

The B127U-110-PH supports Ultra HD resolutions up to 3840 x 2160 (4K x 2K) at 60 Hz with uncompressed DTS-HD, Dolby TrueHD and 7.1-channel digital audio. High Dynamic Range (HDR) provides a wide range of vibrant colors with richer contrast, brighter whites and deeper blacks that pop on your 4K display. HDCP 2.2 compliance allows you to stream 4K content with no complications. This receiver also supports 4:4:4 chroma subsampling for top-level PC gaming or using your HDTV as a PC monitor.

Create Daisy-Chain Installations with HDMI Outputs, DisplayPort Outputs or Both

The B127U-110-PH can be connected to additional B127U-110-PH HDMI receivers or B127U-110-PD DisplayPort receivers (sold separately) in a four-link daisy-chain installation. Each additional receiver adds up to 230 feet (70.1 meters) to the maximum video transmission distance and up to a total of 920 feet (280 meters) for the entire installation. Note: See the installation diagram in the owner's manual for more information.

Multi-Resolution Support Allows Mixing and Matching of Displays of Different Resolutions

The B127U-110-PH is backward compatible with 4K/30 Hz and 1080p resolutions via automatic switching, allowing each connected monitor to display video at its maximum resolution without affecting the other outputs.

Plug-and-Play Operation for Quick Setup and Immediate Use

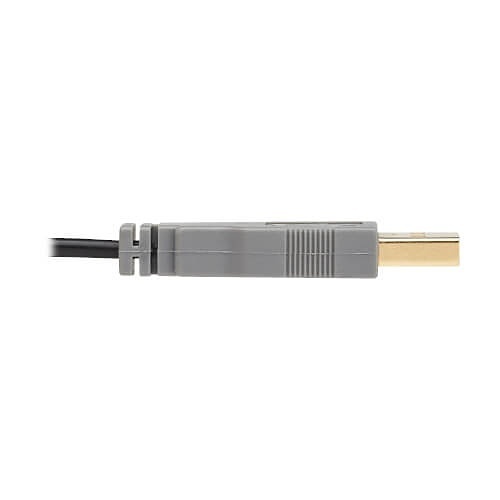

The receiver works right out of the box with no software required. A one-foot USB-A pigtail connector is the primary power source. Plug the USB connector on the receiver into a USB-A power adapter (such as U280-W01-QC3-1, sold separately) or USB-A port on the connected display. User-supplied 24 AWG Cat6 cabling connects the transmitter and receivers. Note: The receiver can also be powered through its MicroUSB port

TAA-Compliant for GSA Schedule Purchases

The B127U-110-PH is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.

Main Features

  • Extends 4K HDMI signals up to 230' via Cat6
  • Supports Ultra HD 4K at 60 Hz with HDR
  • Compatible with DTS-HD, Dolby TrueHD audio
  • 4:4:4 Chroma subsampling for top-level gaming
  • Daisy-chain up to 920' with additional receivers
  • Backward compatible with 4K/30 Hz and 1080p
  • Plug-and-play with no software required
  • Powered via USB-A or Micro-USB
  • TAA-Compliant for federal contracts

General Information

Name: Eaton Tripp Lite B127U-110-PH HDMI over CAT6 Pigtail Receiver / Repeater 4K
Category: Pro AV, Commercial Video Signal Distribution, Pro HDMI Extenders
UPC Code:
Country of Origin: . Country of origin is subject to change.
