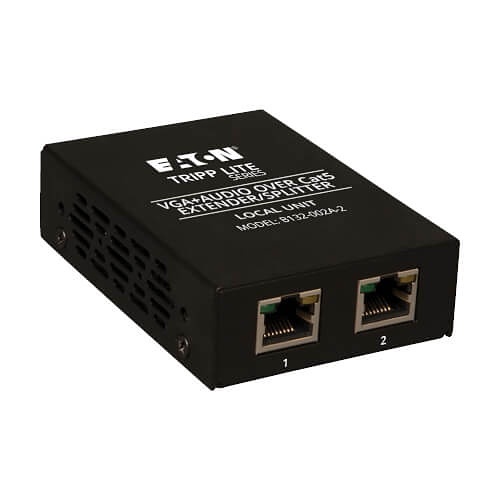

Eaton Tripp Lite B132-002A-2 2-Port VGA Over CAT5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, up to 1000' (305 m), TAA
Eaton Tripp Lite B132-002A-2 2-Port VGA Over CAT5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, up to 1000' (305 m), TAA
- 2-Port VGA Splitter for video/audio over CAT5/6
- Extends signals up to 1000' with 24 AWG cable
- Supports Resolutions up to 1920 x 1440 (60 Hz)
- 2-Port VGA Splitter for video/audio over CAT5/6
- Extends signals up to 1000' with 24 AWG cable
- Supports Resolutions up to 1920 x 1440 (60 Hz)
Sign In for Dealer Pricing
Become an ADI Customer- 2-Port VGA Splitter for video/audio over CAT5/6
- Extends signals up to 1000' with 24 AWG cable
- Supports Resolutions up to 1920 x 1440 (60 Hz)

Eaton Tripp Lite B132-002A-2 2-Port VGA Over CAT5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, up to 1000' (305 m), TAA
B132-002A-2 | TC-B132002A2
Please sign in to view pricing and availability and to add to cart.
Product Overview
Tripp Lite's B132-002A-2 allows you to split a single VGA Video and Audio signal into 2. Along with a B132-100A or B132-100A-WP-1 remote receiver unit, you can extend a 1920 x 1440 (60Hz) Video and Audio signal up to 500 ft., or a 1024 x 768 (60Hz) Video and Audio signal up to 1,000 ft., when using 24Awg, Solid Wire Cat5e/6 cable, such as Tripp Lite's N022-01K-GY (Cat5) and N222-01K-GY (Cat6).
The range and number of monitors/speakers can be further expanded by adding B132-110A repeater units. Connect up to 4 remote units in a repeater chain (3 repeaters and 1 receiver), with a set of monitor and speakers at each location. A 1920 x 1440 (60Hz) Video and Audio signal can be extended up to 500 ft. from the first repeater in the chain to the last receiver. A 1024 x 768 (60Hz) Video and Audio signal can be extended up to 1,000 ft. from the first repeater in the chain to the last receiver.
For optimal video image quality between 500 and 1,000 ft., use Zero-Skew cable, such as Tripp Lite P524-01K. The transmitter unit features functionality that allows for the EDID information from a connected display to be copied and sent to the connected computer, providing optimal compatibility. Includes mounting hardware that allows unit to be wallmounted, rackmounted or pole mounted. Ideal for digital signage situations, such as retail, schools, churches, etc. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Main Features
- 2-Port VGA Splitter for video/audio over CAT5/6
- Extends signals up to 1000' with 24 AWG cable
- Supports Resolutions up to 1920 x 1440 (60 Hz)
- EDID copy feature for optimal display compatibility
- Expandable with B132-110A repeaters for more monitors
- Includes mounting hardware for versatile installation
- Ideal for digital signage in various environments
- TAA Compliant for GSA Schedule purchases
General Information
Specifications
-
ADI Part Number TC-B132002A2 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number B132-002A-2 Product Model B132-002A-2 Product Name VGA + Audio over Cat5 Extender 2-Port Transmitter Product Type Video Extender Transmitter
-
Cable Type Category 6 Connectivity Technology Wired Maximum Operating Distance 1000' Media Type Supported Twisted Pair Number of Input Devices Supported 1
-
TAA Compliant Yes
-
Maximum Video Resolution 1920 x 1440
-
Network (RJ-45) Yes Number of Network (RJ-45) Ports 2 VGA In Yes
-
Color Black Depth 3.7" Form Factor Pole Mount, Rack Mount, Wall Mount Height 1" Width 2.5"
-
Limited Warranty 1-Year
-

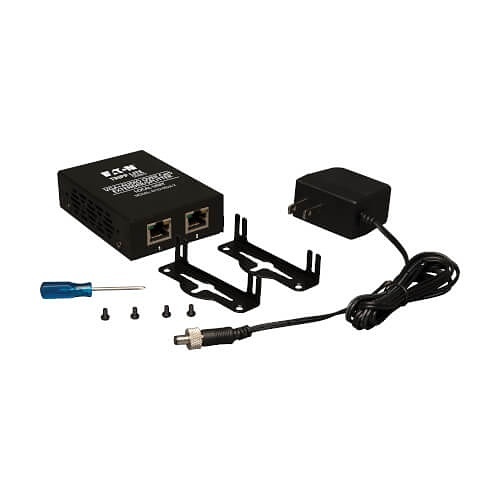

Country of Origin TW Environmental Certification RoHS Environmentally Friendly Yes Package Contents - 2 Port Extender/Splitter local (Transmitter) unit
- Mounting hardware
- External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.5A; Output: 5V, 2A, 5 ft.)
- Owner's Manual
