Product Overview
The VESA-compliant DWT1327S Tilt Wall Mount allows you to mount your flat-panel television, monitor or other display on the wall. Ideal for classrooms, boardrooms, hotels, bars and restaurants, it fits most flat-panel displays from 13 to 27". A -15° to +10° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Low-profile mount is concealed behind the display to give a sleek, professional appearance. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 88 lbs (39.9 kgs). Comes fully assembled for quick mounting to the wall with included hardware. Conforms to VESA-compliant displays with any of the following mounting hole patterns: 75x75mm, 75x100mm, 100x75mm and 100x100mm.
Main Features
- Fits 13" to 27" TVs and monitors
- Ideal for classrooms, boardrooms, hotels, bars, and restaurants
- Mounts out of sight for a sleek appearance
- Includes mounting hardware
- -15° to +10° tilt for comfortable viewing
- Supports up to 88 lb (39.9 kg)
- Scratch-resistant powder-coated finish
- Fully assembled for immediate installation
- Supports VESA patterns: 75x75, 75x100, 100x75, 100x100
General Information
Name: Eaton Tripp Lite DWT1327S Tilt Wall Mount for 13" to 27" TVs and Monitors, Fits Most Flat-Panel Displays from 13" to 27"
Category: Pro AV, Commercial Displays, Pro Display Accessories & Mounts
UPC Code: 037332183576
Country of Origin: China. Country of origin is subject to change.
Specifications
-
ADI Part Number TC-DWT1327S Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number DWT1327S Packaged Quantity 1 Product Model DWT1327S Product Name Tilt Wall Mount for 13" to 27" Flat-Screen Displays Product Type Wall Mount Weight 0.99lb
-
Device Supported Flat Panel Display Maximum Load Capacity 88 lb
-
Color Black Form Factor Wall Mount Material Metal VESA Mount Compatible Yes VESA Mount Standard 100 x 100, 75 x 75
-
Maximum Screen Size Supported 27" Minimum Screen Size Supported 13" Number of Displays Supported 1
-
Limited Warranty 5-Year
-

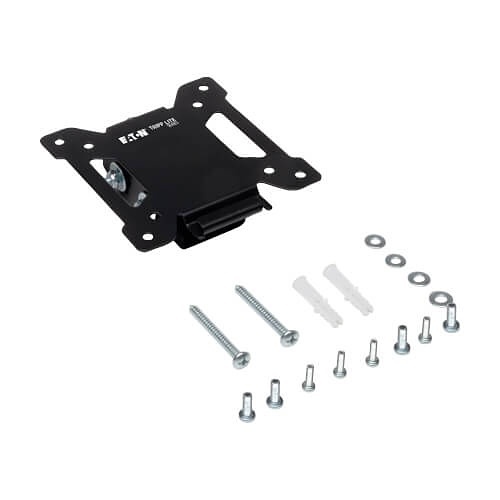

Compatibility LCD TV Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Features Adjustable Viewing Angle, Tilt Package Contents - DWT1327S Tilt Wall Mount for 13 to 27 TVs and Monitors
- (4) M4 screws
- (4) M5 screws
- (4) D5 washers
- (2) Anchor bolts
- (2) Concrete anchors
- Owner’s manual
