Image of TC-ISOBAR12

Eaton Tripp Lite IBAR12 Outlet Network Server Isobar Surge Suppressor, 15' Cord, 3840 Joules, Diagnostic LEDs, 1U Rackmount, 5-20P, Metal Enclosure

IBAR12|TC-ISOBAR12

Eaton Tripp Lite IBAR12 Outlet Network Server Isobar Surge Suppressor, 15' Cord, 3840 Joules, Diagnostic LEDs, 1U Rackmount, 5-20P, Metal Enclosure

IBAR12|TC-ISOBAR12
Key Features
What's Included
  • Prolong the life of your equipment by connecting them to the surge protector
  • 12 x NEMA 5-15R receptacles to protect your equipment from transient surges
  • Give your devices maximum protection with 3840 J energy rating
Key Features
What's Included
  • Prolong the life of your equipment by connecting them to the surge protector
  • 12 x NEMA 5-15R receptacles to protect your equipment from transient surges
  • Give your devices maximum protection with 3840 J energy rating

Sign In for Dealer Pricing

Become an ADI Customer
Hybrid Cloud Storage for Video
Key Features
What's Included
  • Prolong the life of your equipment by connecting them to the surge protector
  • 12 x NEMA 5-15R receptacles to protect your equipment from transient surges
  • Give your devices maximum protection with 3840 J energy rating
Eaton Tripp Lite

Eaton Tripp Lite IBAR12 Outlet Network Server Isobar Surge Suppressor, 15' Cord, 3840 Joules, Diagnostic LEDs, 1U Rackmount, 5-20P, Metal Enclosure

IBAR12 | TC-ISOBAR12

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

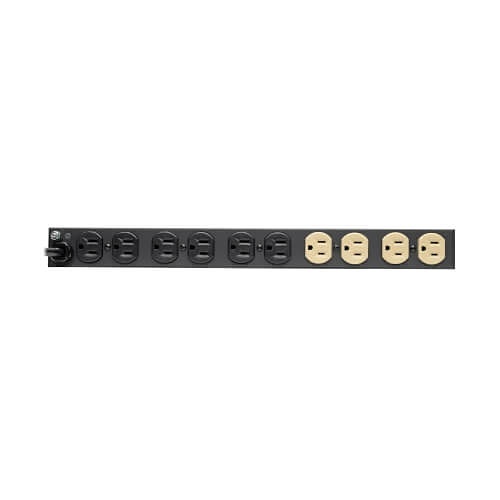

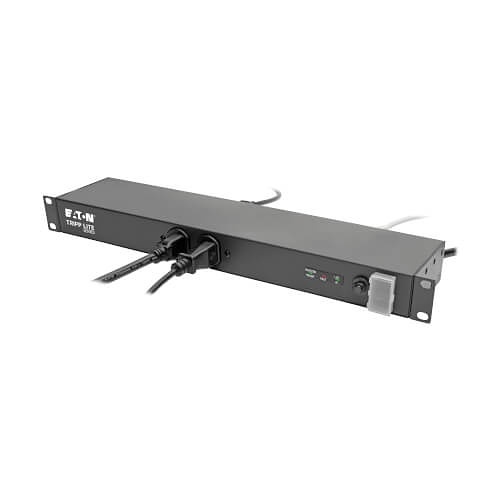

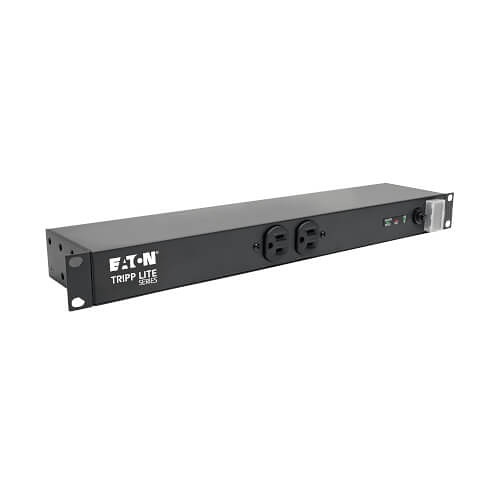

Tripp Lite's IBAR12 offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front/10 rear), 15 ft AC power cord and guarded power switch to reduce the risk of accidental shutoff. Lifetime warranty with $25,000 Ultimate Lifetime Insurance (USA & Canada Only) coverage.PLUG/OUTLETS: Input: NEMA 5-15P/Output: 12 NEMA5-15R (2 front & 10 rear)ELECTRICAL: 120V AC, 50/60Hz, 15A (Requires standard NEMA 5-15R wall receptacle)SUPPRESSION: AC: 140V RMS Clamping/3840 joules/60,000 ampsFORMAT: Supports 19 in. rackmount (uses 1 rack space/1U), wallmount, under-counter and more

Main Features

  • Prolong the life of your equipment by connecting them to the surge protector
  • 12 x NEMA 5-15R receptacles to protect your equipment from transient surges
  • Give your devices maximum protection with 3840 J energy rating
  • 15 ft cord length gives you more freedom as to where you place your connected equipment

General Information

Name: Eaton Tripp Lite IBAR12 Outlet Network Server Isobar Surge Suppressor, 15' Cord, 3840 Joules, Diagnostic LEDs, 1U Rackmount, 5-20P, Metal Enclosure
Category: Batteries & Power Supplies, Power Strips & Surge Protectors, Surge Protection Modules
UPC Code: 037332010162
Country of Origin: China. Country of origin is subject to change.

Specifications
