Image of TC-MV20NET
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA

PDUMV20NETLX|TC-MV20NET
Shop all Eaton Tripp Lite

Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA

PDUMV20NETLX|TC-MV20NET
Key Features
  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • 24 Switched NEMA 5-15/20R Outlets for AC Power distribution
  • Remote control for Power up, down, reboot, or lock out devices
Key Features
  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • 24 Switched NEMA 5-15/20R Outlets for AC Power distribution
  • Remote control for Power up, down, reboot, or lock out devices

Sign In for Dealer Pricing

Become an ADI Customer
Key Features
  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • 24 Switched NEMA 5-15/20R Outlets for AC Power distribution
  • Remote control for Power up, down, reboot, or lock out devices
Eaton Tripp Lite

Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA

PDUMV20NETLX | TC-MV20NET

Please sign in to view pricing and availability and to add to cart.

Overview
Specifications
Documents

Product Overview

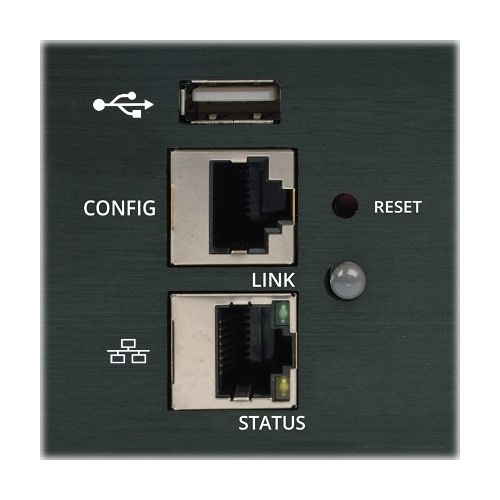

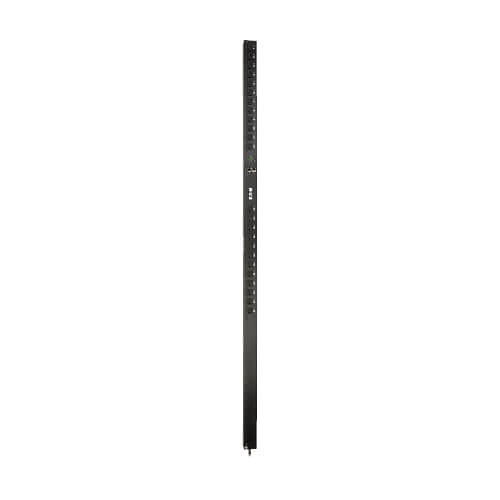

The PDUMV20NETLX 1.9kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 24 switched NEMA 5-15/20R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10' (3.05m) cord with NEMA L5-20P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2c, SNMPv3, Telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19" racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

Main Features

  • 1.9kW 120V Switched rack PDU with Single-Phase input
  • 24 Switched NEMA 5-15/20R Outlets for AC Power distribution
  • Remote control for Power up, down, reboot, or lock out devices

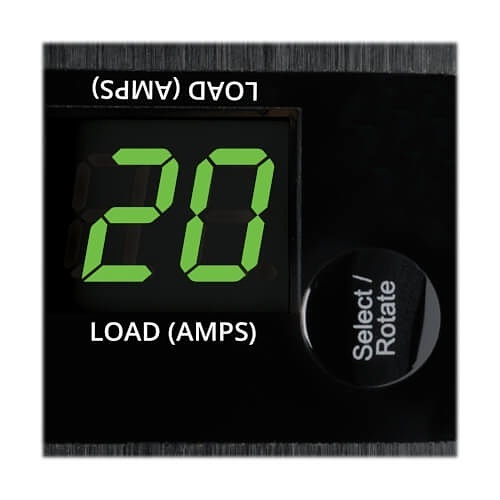

  • Digital ammeter reports total PDU load in real time
  • Built-in LX Platform Interface for enhanced remote management
  • Firmware upgrades support future product enhancements
  • Easy 0U installation in EIA-standard 19" racks

General Information

Name: Eaton Tripp Lite PDUMV20NETLX 1.9 kW Single-Phase Switched PDU, LX Interface, 120V Outlets (24 5-15/20R), 10' (3.05 m) Cord with L5-20P, 0U, TAA
Category: Batteries & Power Supplies, Power Management, Power Distribution Units
UPC Code: 037332205315
Country of Origin: Taiwan. Country of origin is subject to change.

Specifications

Product Documents and Resources

Product Data Sheet
User Manual
Manufacturer Brochure
