Eaton Tripp Lite N286-100G-SR4SA QSFP28 Transceiver, 100G, 850nm, 100m
N286-100G-SR4SA | TC-N28601GS5
Please sign in to view pricing and availability and to add to cart.
Product Overview
QSFP28 Transceiver for Connecting to Your Arista Network Switch or Server
This QSFP28 transceiver allows you to connect a multimode fiber optic cable to a 100 Gbps network router, server or switch. It transmits data up to 100 meters (328 feet) using an 850 nm wavelength. The zinc housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Arista QSFP-100G-SR4 Transceiver Module
The MSA-compliant N286-100G-SR4SA functions just like the equivalent Arista QSFP-100G-SR4 transceiver module and is manufactured to meet or exceed Arista specifications. You can use this transceiver with any compatible Arista router, server or switch and receive the same performance as the QSFP-100G-SR4.
Hot-Swappable for Installation Without Network Interruption

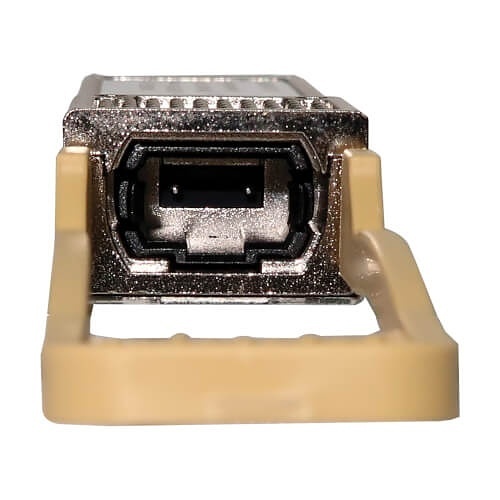

This input/output device is fully hot-swappable, so you can install it without a potentially costly 100 Gbps network shutdown or device reboot. Just plug the QSFP28 end of the transceiver into your Arista network device. The other end has an MTP/MPO connector to link with multimode fiber optic cable (sold separately). A push/pull tab connector is easily accessible in high-density data center applications and makes the plug-and-play transceiver easy to install and remove with one hand.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of operating information in real time, such as transceiver temperature, input and output power and supply voltage.
Main Features
- 100GBase-SR4 QSFP28 Transceiver
- Compatible with Arista QSFP-100G-SR4
- Supports 100Gbps data transmission
- 850 nm wavelength for 100m range
- Zinc Housing for EMI protection
- Hot-swappable for easy installation
- MTP/MPO Connector for MMF
- Push/pull tab for easy handling
- Supports Digital Diagnostic Monitoring
General Information
Specifications
-
ADI Part Number TC-N28601GS5 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N286100GSR4SA Product Model N286-100G-SR4SA Product Name Arista N286-100G-SR4SA QSFP28 Module Product Series N286 Product Type QSFP28 Weight 0.11lb
-
Media Type Supported Optical Fiber
-
Number of Ports 1
-
Network Technology 100GBase-SR
-
Ethernet Technology 10 Gigabit Ethernet
-
Depth 5.7" Form Factor Hot-swappable Height 0.7" Width 3.1"
-
Limited Warranty 3-Year
-
Compatibility MSA Compliant Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - N286-100G-SR4SA QSFP28 Transceiver
