Eaton Tripp Lite N286-10G-LR-S 10km SFP-10G-SR-S Fiber Transceiver
Eaton Tripp Lite N286-10G-LR-S 10km SFP-10G-SR-S Fiber Transceiver
- Cisco-compatible SFP+ transceiver for seamless integration
- Supports 10GBase-LR with singlemode LC connection
- Transmits data up to 10km (6.1 mi)
- Cisco-compatible SFP+ transceiver for seamless integration
- Supports 10GBase-LR with singlemode LC connection
- Transmits data up to 10km (6.1 mi)
Sign In for Dealer Pricing
Become an ADI Customer- Cisco-compatible SFP+ transceiver for seamless integration
- Supports 10GBase-LR with singlemode LC connection
- Transmits data up to 10km (6.1 mi)

Eaton Tripp Lite N286-10G-LR-S 10km SFP-10G-SR-S Fiber Transceiver
N286-10G-LR-S | TC-N2861GS1
Please sign in to view pricing and availability and to add to cart.
Product Overview

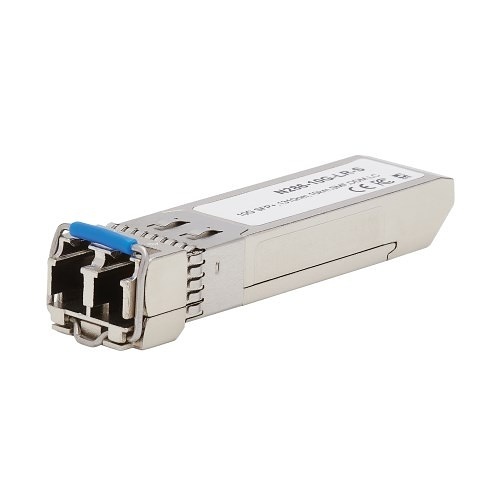

SFP+ Transceiver Designed for Connection to Your Cisco Network Switch or Server
This SFP+ transceiver allows you to connect an 8.3/125 singlemode fiber optic cable to a 10 Gbps network router, server or switch. It transmits data up to 10 kilometers (721 feet) and supports bi-directional Gigabit Ethernet communication up to 11.1 Gbps. The metal housing protects against electromagnetic interference (EMI) and excessive power dissipation.
Functionally Equivalent to Cisco SFP-10G-LR-S Transceiver Module
The MSA-compliant N286-10G-LR-S functions just like the equivalent Cisco SFP-10G-LR-S transceiver module and is manufactured to meet or exceed Cisco specifications. You can use this transceiver with any compatible Cisco router, server or switch and receive the same performance as the SFP-10G-LR-S.
Hot-Swappable for Installation Without Network Interruption

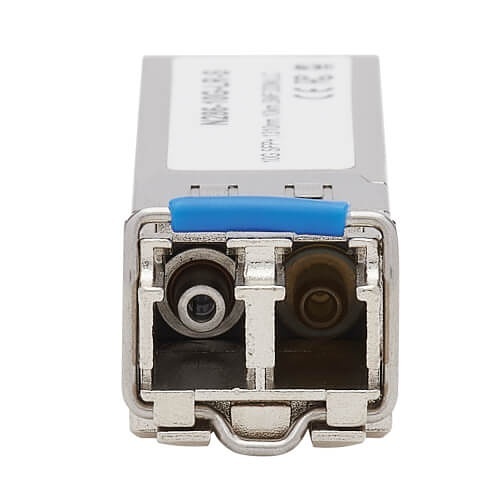

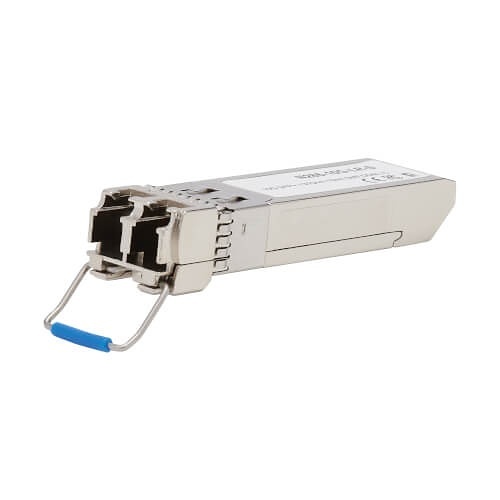

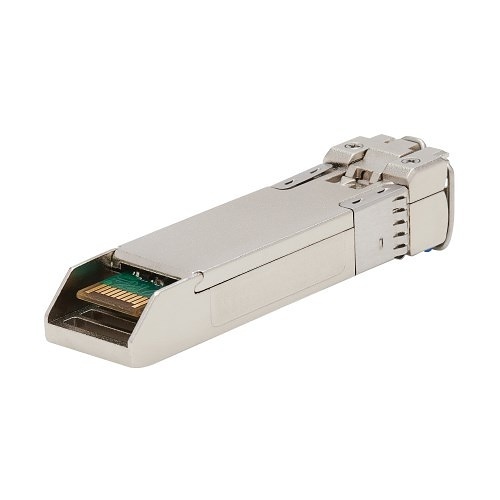

This input/output device is fully hot-swappable, so you can install it without a potentially costly 10 Gbps network shutdown or device reboot. Just plug the SFP+ end of the transceiver into your Cisco network device. The other end has an LC duplex connector to link with singlemode fiber optic cable (sold separately). A convenient bail clasp latch helps you carefully remove the module from the device.
Supports Digital Diagnostic Monitoring (DDM) for Real-Time Status Monitoring
DDM support lets you keep track of various operating statuses in real time, including transceiver temperature, input and output power, and supply voltage.
S-Class Transceiver Highly Recommended for Enterprise Network
This S-Class fiber transceiver module is ideal for enterprise network runs of shorter distances than other standard modules. The S-Class N286-10G-LR-S supports only Ethernet protocol and operates only within commercial temperature ranges (0 to 70°C).
Main Features
- Cisco-compatible SFP+ transceiver for seamless integration
- Supports 10GBase-LR with singlemode LC connection
- Transmits data up to 10km (6.1 mi)
- Bi-directional Gigabit Ethernet up to 11.1 Gbps
- Metal Housing for EMI protection
- Hot-swappable for easy installation
- Supports Digital Diagnostic Monitoring (DDM)
- Ideal for enterprise networks with shorter distances
- Operates within commercial temperature range (0 to 70°C)
General Information
Specifications
-
ADI Part Number TC-N2861GS1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N286-10G-LR-S Product Name Cisco SFP+ Module Product Type SFP+ Weight 0.06 lb
-
Media Type Supported Optical Fiber
-
Number of Ports 1
-
Network Technology 10GBase-LR
-
Ethernet Technology 10 Gigabit Ethernet
-
Application/Usage Commercial Depth 0.6" Form Factor Hot-swappable Height 0.5" Width 2.3"
-
Limited Warranty 3-Year
-
Compatibility MSA Compliant Country of Origin CN Environmental Certification RoHS Environmentally Friendly Yes Package Contents - N286-10G-LR-S Cisco-Compatible SFP-10G-LR-S SFP+ Transceiver
- Quick Start Guide
