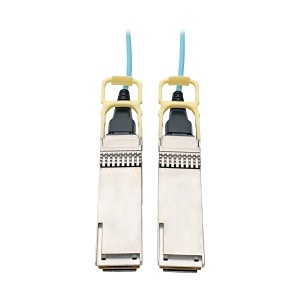

Eaton Tripp Lite N28H-30M-AQ QSFP28 to QSFP28 Active Optical Cable, 100GbE, AOC, Male to Male, 30m (98.42'), Aqua
N28H-30M-AQ
|TC-N28H30MAQ
Shop All Eaton Tripp Lite
Eaton Tripp Lite N28H-30M-AQ QSFP28 to QSFP28 Active Optical Cable, 100GbE, AOC, Male to Male, 30m (98.42'), Aqua
N28H-30M-AQ | TC-N28H30MAQ
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview
This 30-meter (98.4-foot) QSFP28 Active Optical Cable (AOC) provides next-generation performance by combining four full-duplex 25 Gbps SFP channels into one affordable high-density package. Each male connector contains four independent 850 nm VCSEL-based transmitters and four independent receivers using PIN photo detectors inside. Each lane supports data transfer speeds up to 25 Gbps. Together, the N28H-30M-AQ provides an aggregated speed up to 100 Gbps, making it ideal for switches, servers, routers and other high-end networking equipment.Push/Pull Tab Connectors Provide Quick, Easy Connections This QSFP28 active optical cable integrates a 100 Gbps Ethernet-optimized 38-position “board as connector” design. Die-cast zinc connectors offer superior EMI (electromagnetic interference) resistance and reduced crosstalk. The connectors have also been tested to meet stringent insertion loss standards. The cable is suitable for high-speed, short-reach dense data connections, such as 100GBASE-SR4 Ethernet, PCIe, Fibre Channel and InfiniBand applications. The plenum-rated OFNP jacket is designed for connecting network components in drop ceiling, walls and ducts.Fully Compliant and Compatible with the Latest Standards
Main Features
- QSFP28 cable connects high-speed 100 Gb switches, servers and other networking devices in data centers and enterprise wiring closets.
- Combines 4 full-duplex 25 Gbps SFP lanes for an aggregated 100 Gbps rate
- Ideal for switches, servers, routers and other high-end networking equipment
- Multi-platform support for 100 Gb Ethernet, InfiniBand, Fibre Channel and PCIe
- Ergonomic push/pull tabs allow easy one-handed connection and disconnection
- This product is covered by a 1-year limited warranty
General Information
Name: Eaton Tripp Lite N28H-30M-AQ QSFP28 to QSFP28 Active Optical Cable, 100GbE, AOC, Male to Male, 30m (98.42'), Aqua
Category: Wire & Cable, Fiber Optic Cables & Cords, Fiber Optic Patch Cords
UPC Code: 37332225658
Country of Origin: China. Country of origin is subject to change.
Specifications
ADI Part Number TC-N28H30MAQ Brand Name Eaton Tripp Lite Country of Origin CN Manufacturer Tripp Lite Manufacturer Part Number N28H-30M-AQ Product Model N28H-30M-AQ Product Name QSFP28 to QSFP28 Active Optical Cable - 100GbE, AOC, M/M, Aqua, 30 m (98.4 ft.) Product Type Network Cable
Cable Type Fiber Optic Connector on First End 1 x QSFP28 Male IEEE 802.3bm Network Connector on Second End 1 x QSFP28 Male IEEE 802.3bm Network Core/Cladding Diameter 50/125 µm Device Supported Network Device, Router, Server, Switch Fiber Optic Mode Multimode
Cable Length 98.00' Color Aqua
Environmental Certification RoHS Environmentally Friendly Yes Features Active, EMI Protection
