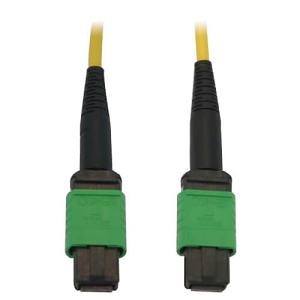

Tripp Lite N390B-03M-12-AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, 12F MTP/MPO-APC F/F, LSZH, 3m (9.8'), Yellow
N390B-03M-12-AP
|TC-N390B03M1
Tripp Lite N390B-03M-12-AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, 12F MTP/MPO-APC F/F, LSZH, 3m (9.8'), Yellow
N390B-03M-12-AP | TC-N390B03M1
Please sign in to view pricing, availability, and to add to cart.
Product Overview
100 GbE Cable Supports Higher Bandwidths Needed for Data Networking
As the amount of traffic in data networks grows, so does the need for devices and fiber cables to support higher bandwidths in enterprise applications in wiring closets, telecom rooms and data centers. This singlemode 9/125 OS2 cable is an ideal choice for 100G Ethernet applications up to 100 meters (328 feet) at 1550 nm. It is also backward compatible with 10 Gb, 25 Gb and 40 Gb networks, so you can future-proof your current application for an eventual upgrade to 100 Gb.
100% Tested for Low Insertion Loss and Back Reflection
The 12-fiber MTP/MPO APC connectors with green housings help minimize back reflection with low insertion loss.
Yellow Jacket Helps Avoid Misidentification That Can Cause Costly Downtime
The OS2-rated cable has a yellow jacket to identify it as singlemode in a crowded patch panel or switch and prevent it from becoming accidentally disconnected. The round low-smoke zero-halogen (LSZH) jacket limits the amount of toxic smoke emitted in case of combustion, making it suitable for poorly ventilated areas.
Main Features
- Supports 100G Ethernet up to 100m
- Backward compatible with 10G, 25G, and 40G networks
- 12-fiber MTP/MPO APC Connectors minimize back reflection
- Low insertion loss for efficient data transmission
- Yellow jacket for easy identification in crowded panels
- LSZH Jacket reduces toxic smoke emissions
- Ideal for enterprise applications in data centers
General Information
Specifications
ADI Part Number TC-N390B03M1 Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N390B03M12AP Product Model N390B-03M-12-AP Product Name N390B-03M-12-AP Fiber Optic Network Cable Product Type Network Cable
Cable Type Fiber Optic Core/Cladding Diameter 9/125 µm Device Supported Network Device, Patch Panel, Switch Fiber Category OS2 Fiber Count 2 Fiber Optic Mode Single-mode Jacket Material LSZH Jacket Type LSZH, OFNR Solid or Stranded Stranded
Connector Type MPO/UPC
Data Transfer Rate 400 Gbit/s
Cable Length 8' Color Yellow
Limited Warranty Lifetime
Country of Origin CN Environmentally Friendly Yes Features Angled Physical Contact (APC), Bendable, Stranded Package Contents - N390B-03M-12-AP 40/100G Singlemode 9/125 OS2 Fiber Optic Cable, Yellow, 3 m (9.8 ft.)
