Tripp Lite N48S-2M24L12-10 OS2 Singlemode Preloaded Fiber Panel, 24F MTP/MPO-APC to 12x LC Duplex F/M, 24F Trunk Cables, 10m (32.8')
N48S-2M24L12-10
|TC-N48S2M2L
Shop All Eaton Tripp Lite
Tripp Lite N48S-2M24L12-10 OS2 Singlemode Preloaded Fiber Panel, 24F MTP/MPO-APC to 12x LC Duplex F/M, 24F Trunk Cables, 10m (32.8')
N48S-2M24L12-10 | TC-N48S2M2L
Please sign in to view pricing, availability, and to add to cart.
Overview
Specifications
Documents
Product Overview

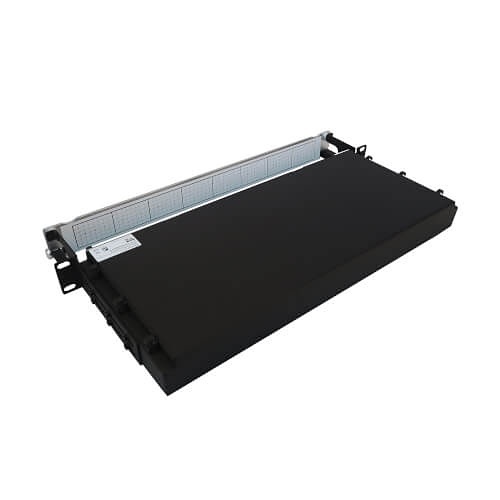

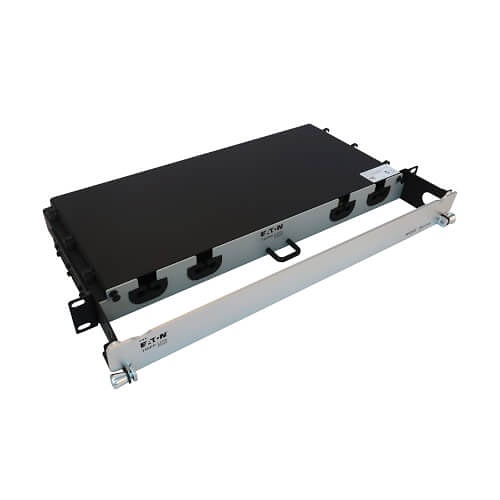

Preloaded Fiber Panel, 1U - 2x (24F MTP/MPO-APC to 12x LC Duplex F/M) 24F Trunk Cables, OS2 Singlemode, 10m (32.8').
Main Features
- 1U Panel with preloaded cabling for cost and time efficiency
- Includes 2x 24F MTP/MPO-APC to LC Duplex trunk cables
- 10m (32.8') OS2 Singlemode cables for easy management

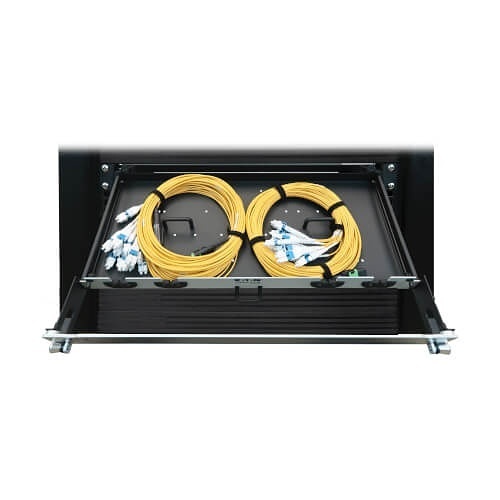

- Aluminum chassis with easy access to stored cables
- Reduces Cable clutter and improves airflow
- Labeled cables and Panels for better organization
- Flexible Cable Length for equipment relocation
- Mounts in 1U of EIA-standard 19" rack
General Information
Name: Tripp Lite N48S-2M24L12-10 OS2 Singlemode Preloaded Fiber Panel, 24F MTP/MPO-APC to 12x LC Duplex F/M, 24F Trunk Cables, 10m (32.8')
Category: Data Comm & Networking, Patch Panels, Fiber Optic Patch Panels
UPC Code:
Country of Origin: . Country of origin is subject to change.
Specifications
ADI Part Number TC-N48S2M2L Brand Name Eaton Tripp Lite Manufacturer Eaton Manufacturer Part Number N48S2M24L1210 Product Model N48S-2M24L12-10 Product Name N48S-2M24L12-10 Preloaded Fiber Panel Product Series N48S Product Type Network Patch Panel
Application/Usage Commercial, Residential Fiber Category OS2 Fiber Optic Mode Single-mode Material Aluminum
Number of LC Ports 12 Number of Ports 12
Color Yellow Compatible Rack Unit 1U Compatible Rack Width 19" Depth 10.2" Form Factor Rack Mount Height 1.7" Rack Height 1U Width 17.3"
Mount Type Rack Mount
Limited Warranty Lifetime
Country of Origin CN Environmentally Friendly Yes Package Contents - N48S-2M24L12-10 Preloaded Fiber Panel
- (2) MTP/MPO-APC to LC Duplex trunk cables, 10 m (32.8 ft.)
- Installation guide
